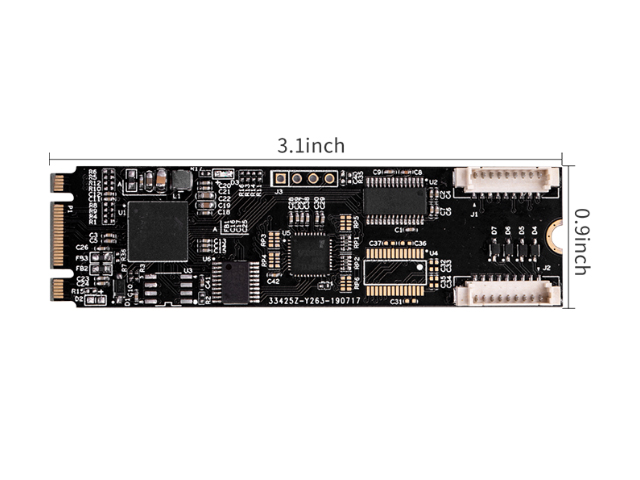

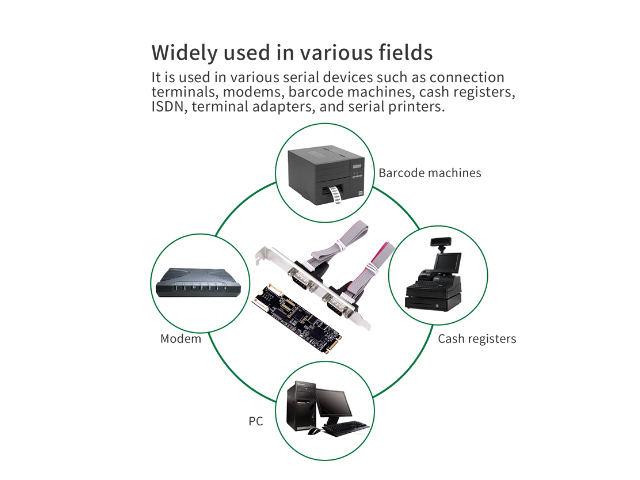

Lekuo M.2 to 2-Port RS-232/422/485 Serial Card

Model

IO-ADA15070

Chipset

EXAR 17V352

Interface

M.2 PCIe x1 (PCIe 2.0 Gen1 compatible)

Serial Ports

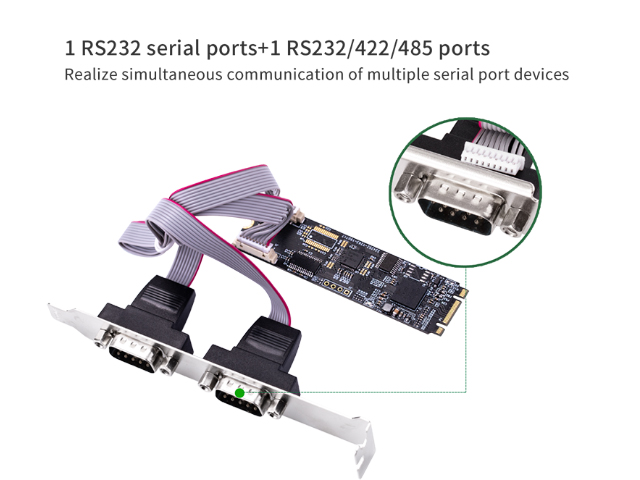

1 x RS-232, 1 x RS-232/422/485 (DB9)

UART

Two independent UART channels, 16550 compatible with 256-byte FIFO (transmit/receive)

Supported Signals

RS-232: DCD, RXD, TXD, DTR, GND, DSR, RTS, CTS, RI; RS-422: TX+, TX-, RX+, RX-, GND; RS-485:Data+, Data-

Baud Rate

300 bps to 921,600 bps

Operating Temperature

-40°C to +85°C

Storage Temperature

-65°C to +150°C

System Compatibility

Windows Server 2003 R2/2008 R2/2012 R2/2016/2019, Windows XP/Vista/7/8/8.1/10; Linux 2.6.27 and above

Package Contents

1 × M.2 to RS232 +RS232/422/485 Card,1 × User Manual, 2 × Low Profile

Features
• PCIe 2.0 Gen 1 compliant
• x1 Link, dual simplex, 2.5 Gbps in each direction

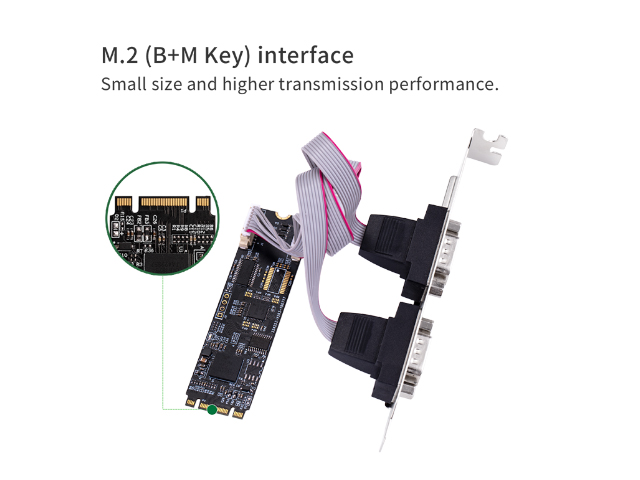

• Suitable for M.2 slot with key M or B based on PCIe
• Data read/write 32-bit operation
• Global interrupt status register for both UARTs
• 16 multi-purpose inputs/outputs (MPIOs)
• Two independent UART channels controlled with
• Support Bits per second Data transfer rates from 300 baud to 921600baud
• 16550 compatible register Set
• 256-byte TX and RX FIFOs
• MCU enable controls RS485 bidirectional data
Signal
• RS232: DCD,RXD,TXD,DTR,GND,DSR,RTS,CTS,RI
• RS422: TX - ,TX+, RX +,RX - GND
• RS485: Data-, Data +
• Data bits：4,5,6,7,8
• Stop bits：1,1.5,2
• Parity bit：Odd, even, mark, space, None
• Flow control： None，Xon / Xoff, Hardware
• Operating Temperature：-40°C to +85°C
• Storage Temperature:-65°C to +150°C

System Requirements
• Windows® Server 2003, 2008, 2012,2016,2019
• Windows® XP, Vista, 7, 8,8.1,10
• Linux 2.6.27, 2.6.31, 2.6.32, 3.x.x and newer

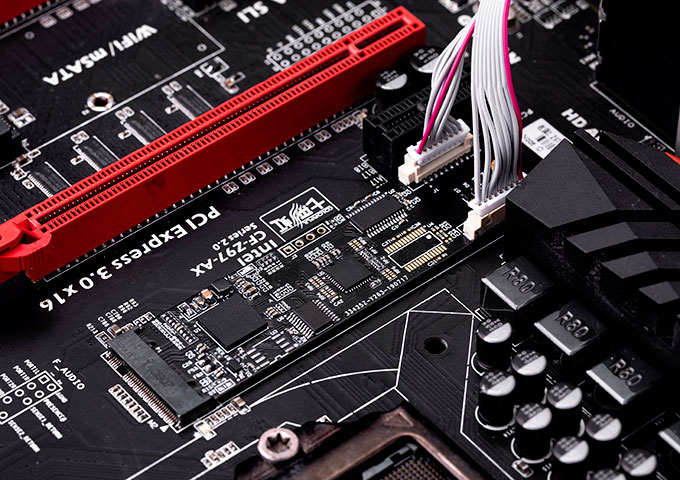

• One free M.2 key M or key B slot

Package Contents

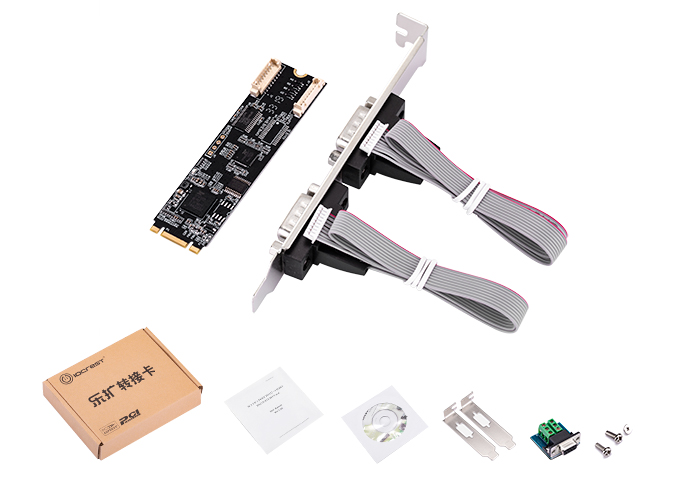

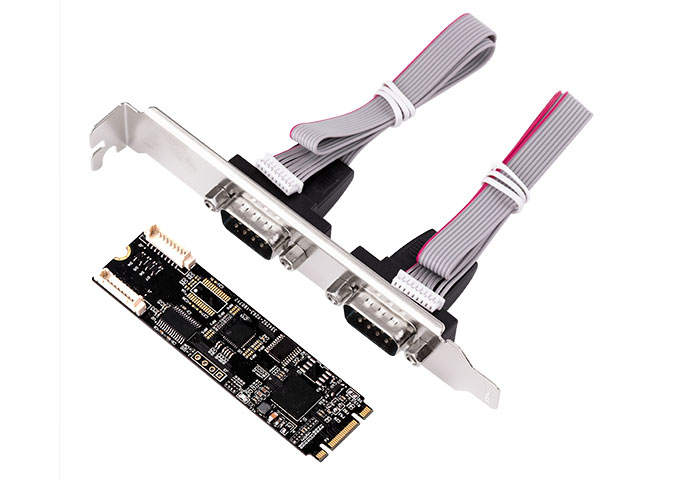

• 1 × M.2 to RS232 +RS232/422/485 Card
• 1 × User Manual
• 2 × Low Profile
