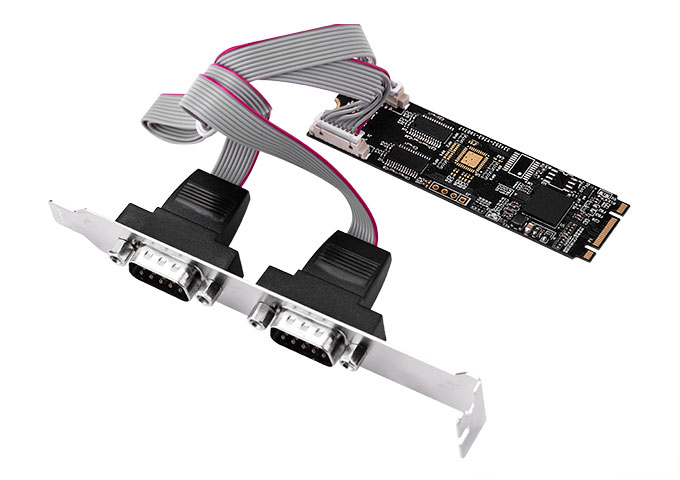

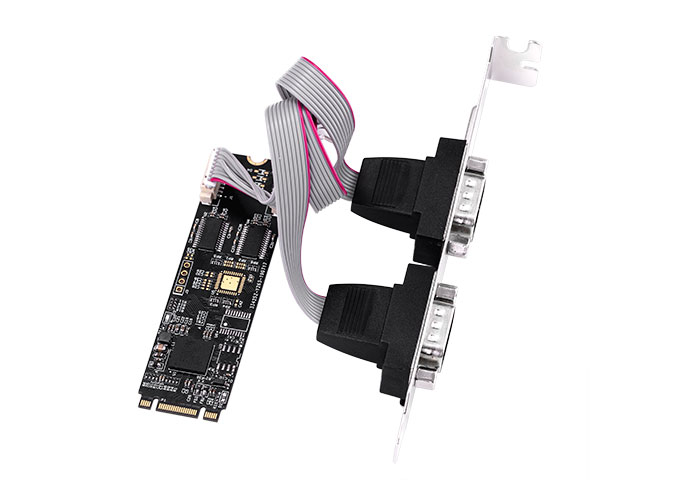

Lekuo M.2 to 2-Port RS-232 Serial Card

Model

IO-ADA15069

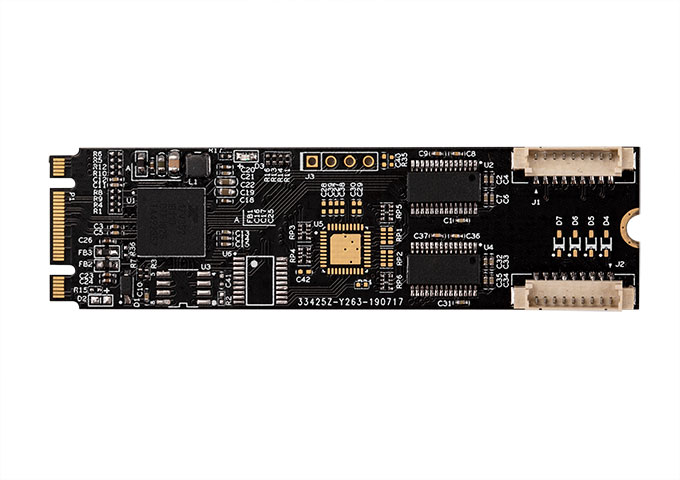

Chipset

EXAR 17V352

Interface

M.2

Serial Ports

2 x DB9 male connectors (RS-232)

Data Transfer Rate

300 bps to 921.6 kbps

UART

Compatible with 16550 standard, 256-byte TX/RX FIFO buffer

Supported Signals

DCD, RXD, TXD, DTR, GND, DSR, RTS, CTS, RI

Data Bits

4, 5, 6, 7, 8 bits

Stop Bits

1, 1.5, 2 bits

Parity

Odd, Even, None, Mark, Space

Flow Control

None, Software (Xon/Xoff), Hardware

Compatibility

Windows (XP to 10, Server 2003–2019), Linux kernel 2.6.27+

Operating Temperature

-65°C to +150°C

Dimensions

80 x 22 mm

Accessories

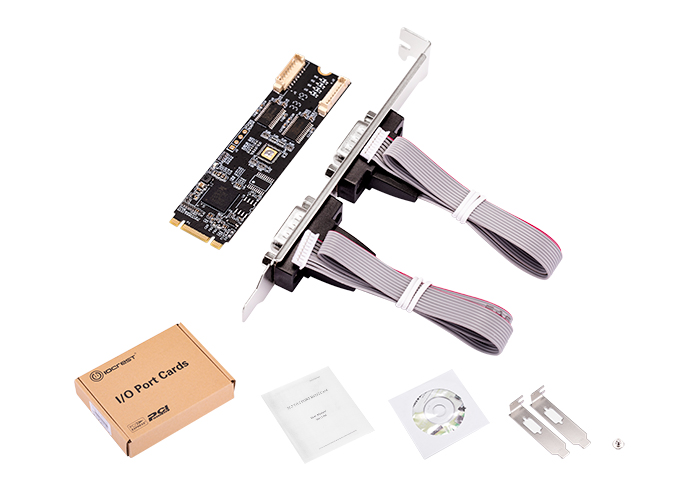

1 × M.2 to 2 port RS232 Card，1 × User Manual， 2 × Low Profile

Features
• PCIe 2.0 Gen 1 compliant
• x1 Link, dual simplex, 2.5 Gbps in each direction
• Suitable for M.2 slot with key M or B based on PCIe
• Data read/write 32-bit operation
• Global interrupt status register for both UARTs
• 16 multi-purpose inputs/outputs (MPIOs)
• Two independent UART channels controlled with
• Support Bits per second Data transfer rates from 300 baud to 921600baud
• 16550 compatible register Set
• 256-byte TX and RX FIFOs
Signal
• RS232: DCD,RXD,TXD,DTR,GND,DSR,RTS,CTS,RI
• Data bits：4,5,6,7,8
• Stop bits：1,1.5,2
• Parity bit：Odd, even, mark, space, None
• Flow control： None，Xon / Xoff, Hardware
• Operating Temperature：-40°C to +85°C
• Storage Temperature:-65°C to +150°C

System Requirements
• Windows® Server 2003, 2008, 2012,2016,2019
• Windows® XP, Vista, 7, 8,8.1,10
• Linux 2.6.27, 2.6.31, 2.6.32, 3.x.x and newer

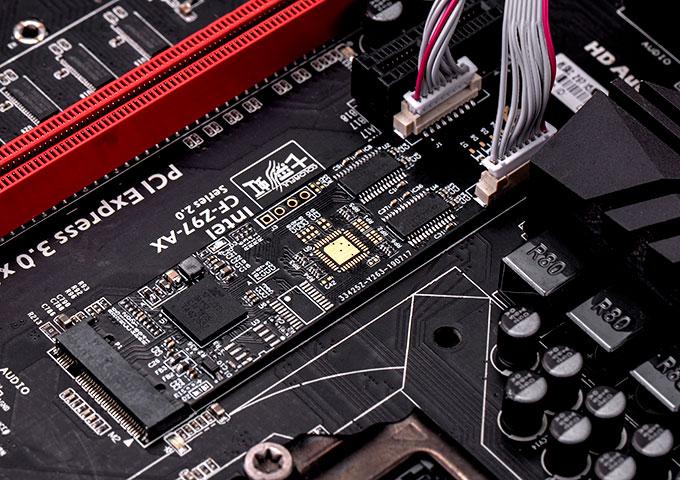

• One free M.2 key M or key B slot

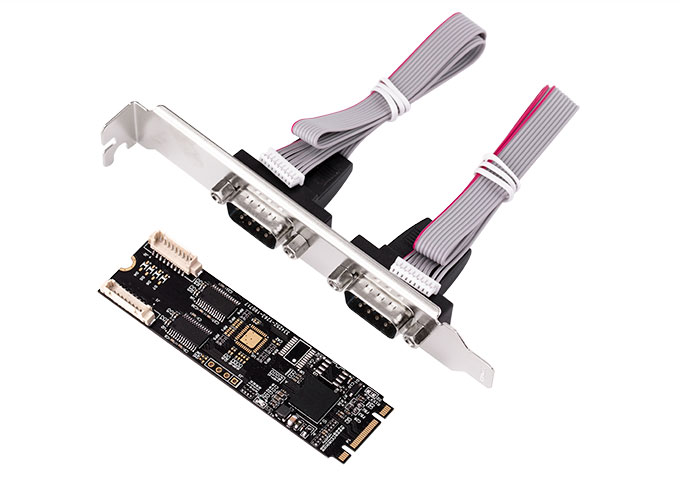

Package Contents
• 1 × M.2 to 2 port RS232 Card
• 1 × User Manual
• 2 × Low Profile
