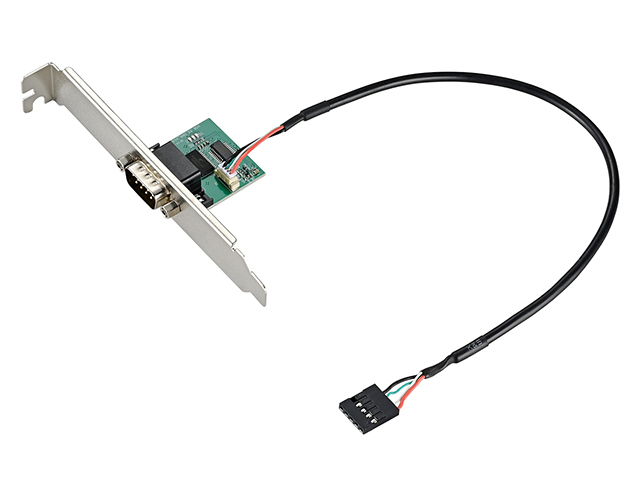

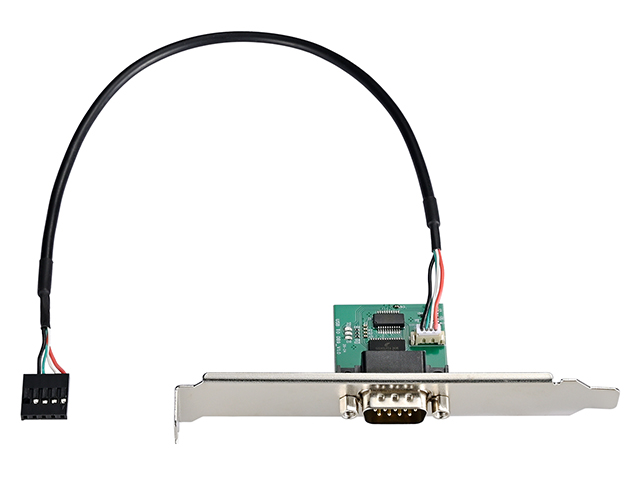

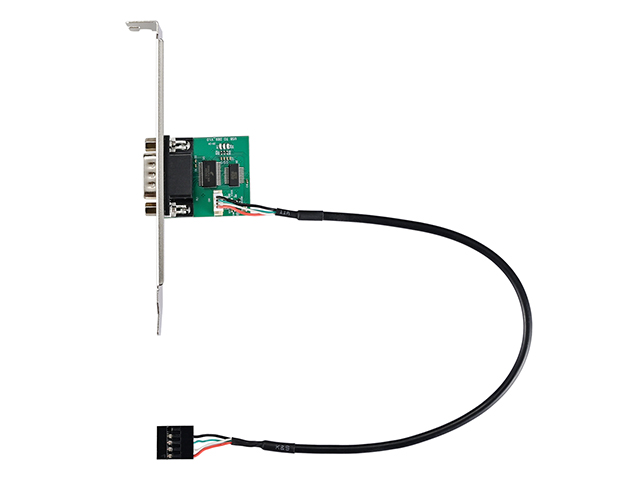

Lekuo USB to RS-232 Serial Adapter

Model

IO-USB2310-03

Chipset

FTDI

Interface

USB 1.0 / 1.1 / 2.0 full speed (USB to DB9M)

Data Transfer Rate

Up to 921600 baud (RS-232)

USB Signals

VCC, DATA+, DATA-, GND, FG

RS-232 Signals

CD, RXD, TXD, DTR, GND, DSR, RTS, CTS, RI

UART Config

7 or 8 data bits; 1 or 2 stop bits; parity: even, odd, mark, space, none

Flow Control

None, hardware (RTS/CTS), XON/XOFF

Additional Modes

Sync/async bit-bang with RD# / WR# strobes; UART signal invert option

LED Indicators

PWR (power), TXD (transmit), RXD (receive)

Operating Temp

–40 to 85 °C

System Compatibility

Windows, Mac OS-X, Linux (>= kernel 3.2), Android

Included Accessories

Short metal plate, USB cable, user manual

Product Dimensions

34 × 31 mm; Cable length: 30 cm

Features
• Standards: conforming to USB1.0, 1.1 and 2.0
• USB signals: VCC, DATA+, DATA-, GND and FG
• RS-232 signals: CD, RXD, TXD, DTR, GND, DSR, RTS, CTS, RI
• Single chip USB to asynchronous serial data transfer interface
• Support Bits per second Data transfer rates from 300 baud to 921600baud (RS232 )
• UART interface support for 7 or 8 data bits,1 or 2 stop bits and even/odd/mark/space/none
• Flow control none,hardware and xon/xoff
• Synchronous and asynchronous bit bang interface options with RD# and WR# strobes
• UART signal inversion option
• USB 2.0 Full Speed capable
• Signal indication: indicator lights for Power (PWR), Send (TXD) and Receive (RXD)
• Extended operating temperature range; -40 to 85°C
Applications
• USB to UART Cable
• POS Printer Terminal
• Networking System
• Industrial and Power Meter
• USB Bar Code Reader
• USB Digital Camera Interface
• USB Wireless/Wired Modem
System Requirements:
• Windows OS
• Mac OS-X
• Linux 3.2 and greater
• Android

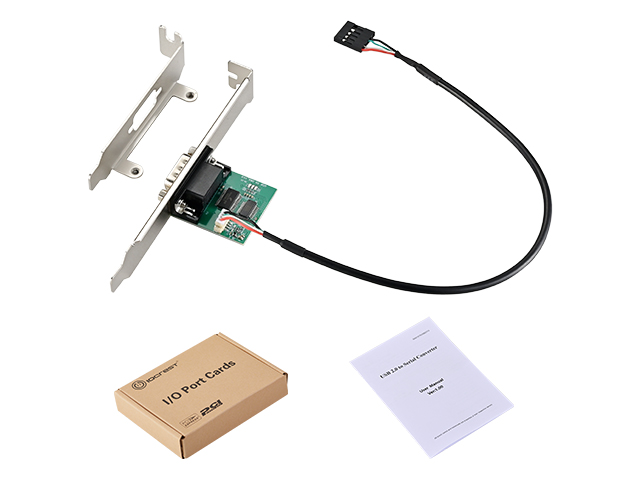

Package Contents
• 1 x USB to Serial Converter
• 1 x User Manual
• 1 x Low Profile Bracket
• 1 x USB Cable

Related Downloads

Driver Download

1. IO-USB2310-03

Download
