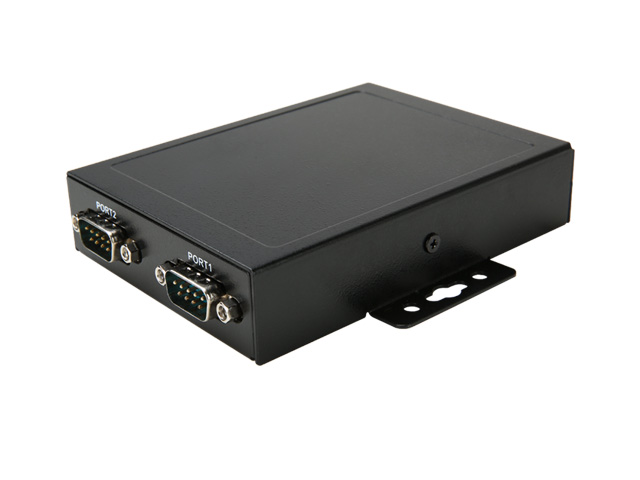

Lekuo USB to 2-Port RS-232 Serial Adapter

Product Specifications

Product Description

Driver Download

Document Download

Q&A

Model

IO-USB3410-2S

Chipset

FTDI FT3410

Interface

USB 2.0 Type-B

Data Transfer Rate

Up to 230Kbps

Serial Ports

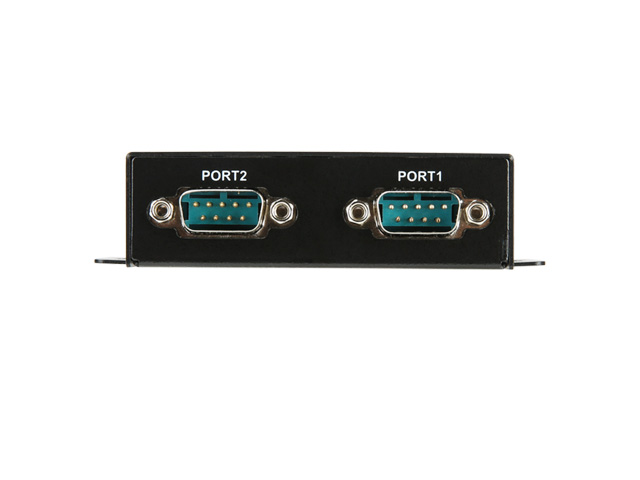

2 x DB9 male connectors (RS-232)

Baud Rate

Configurable up to 230Kbps

Enclosure

Metal Housing

Mounting Option

Wall-mountable

Power Supply

USB powered (optional DC 9–36V input)

Operating Temperature

-10°C to 80°C

Storage Temperature

-20°C to 100°C

System Compatibility

Windows 2000 / XP / 2003 / Vista / 7

Feature

• USB to 2 Port Straight-Through RS232 Serial Adapter

• Rugged metal construction

• Wall-mountable

• COM port settings are retained for serial devices plugged into different USB ports and across reboot

• Baud Rate up to 230 Kbps

• Powered by an available USB port

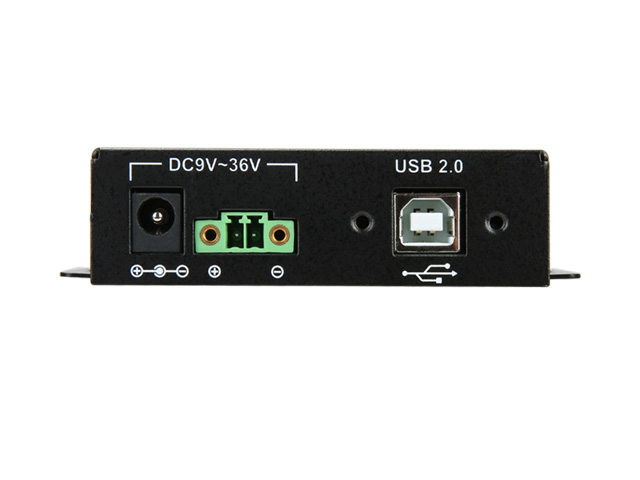

• Optional DC jack (9-36 DC )or terminal block power connections

• Designed to make serial port expansion quick and easy

• Provides dual buffers for upstream and downstream data transfer

• Supports automatic handshake mode

• Enables and disables enumerations

Specifications

• Bus Type: USB 2.0 (4 pin) Female

• Chipset ID: FTDI 3410

• Number of Ports: 2 -DB-9 (9 pin; D-Sub) Male

• Tranfer Rate: 230Kbps

• Environment: Operating Temperature: -10°C to 80°C

• Storage Temperature: -20°C to 100°C

• OS Compatibility: Windows2000/XP/2003/Vista/7

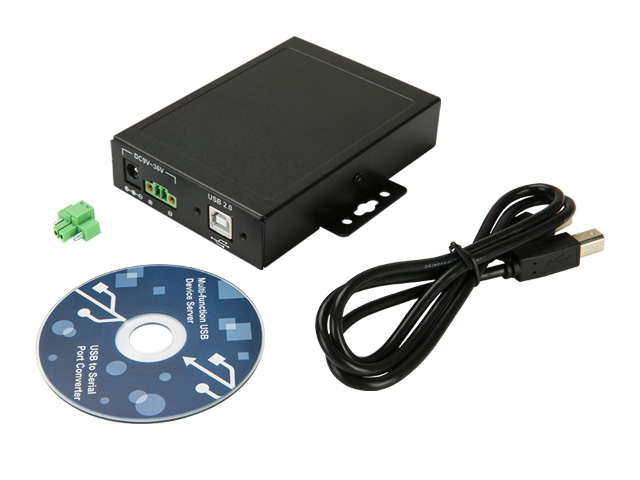

Accessories

• 1 x USB to Serial Converter

• 1 x USB Type B to A Cable
