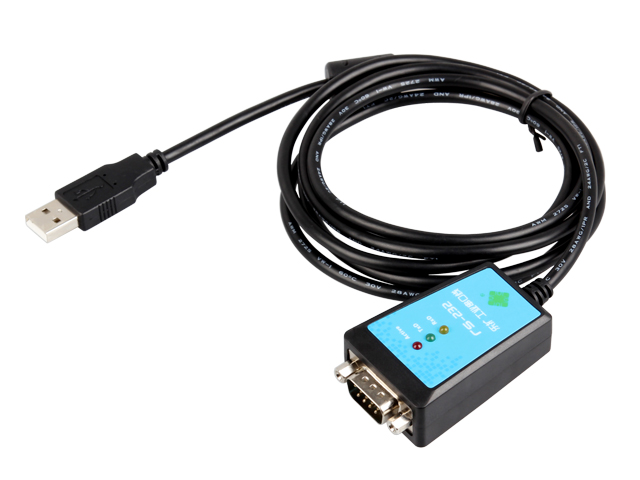

Lekuo USB to RS-232 Serial Cable_Shenzhen MMUI CO.,Ltd

Model

IO-USB2310-02

Chipset

FTDI (UK)

Input Interface

USB

Output Interface

RS232 / RS422 / RS485

Data Transfer Rate

Up to 921.6Kbps

Cable Length

1.8m

Supported Signals

CD, RXD, TXD, DTR, GND, DSR, RTS, CTS, RI

Operating Mode

Asynchronous & Synchronous

Flow Control

None / Hardware / Software (XON/XOFF)

Protection

Surge protection, ±15kV ESD protection

Indicators

TXD, RXD, Power LED

Operating Temperature

-40°C ~ 85°C

System Compatibility

Windows XP~10, Server 2003/2008/2012, XP Embedded, Windows CE 4.2/5.0/6.0, Mac OS X, Linux 3.2+, Android

Features
• Standards: conforming to USB V1.0, 1.1 and 2.0
• USB signals: VCC, DATA+, DATA-, GND and FG
• RS-232 signals: CD RXD TXD DTR GND DSR RTS CTS RI
• Single chip USB to asynchronous serial data transfer interface
• Support Bits per second Data transfer rates from 300 baud to 961200baud (RS232 )
• UART interface support for 7 or 8 data bits,1 or 2 stop bits and even/odd/mark/space/none
• Flow control none,hardware and xon/xoff
• Synchronous and asynchronous bit bang interface options with RD# and WR# strobes
• UART signal inversion option
• USB 2.0 Full Speed capable

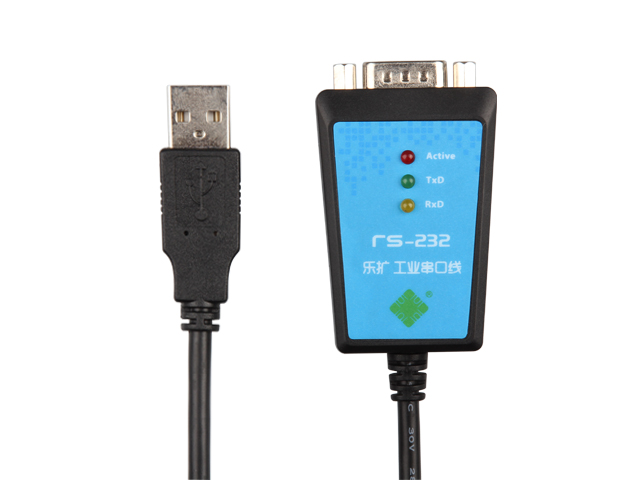

• Signal indication: indicator lights for Power (PWR), Send (TXD) and Receive (RXD)
• Extended operating temperature range; -40 to 85⁰C
Applications
• USB to UART Cable
• POS Printer Terminal
• Networking System
• Industrial and Power Meter
• USB Bar Code Reader
• USB Digital Camera Interface
• USB Wireless/Wired Modem

Systerm requirement

• Windows XP,Vista,7,8 ,10,32,64-bit
• Windows XP Embedded
• Windows CE 4.2, 5.0 and 6.0
• Mac OS-X
• Linux 3.2 and greater
• Android

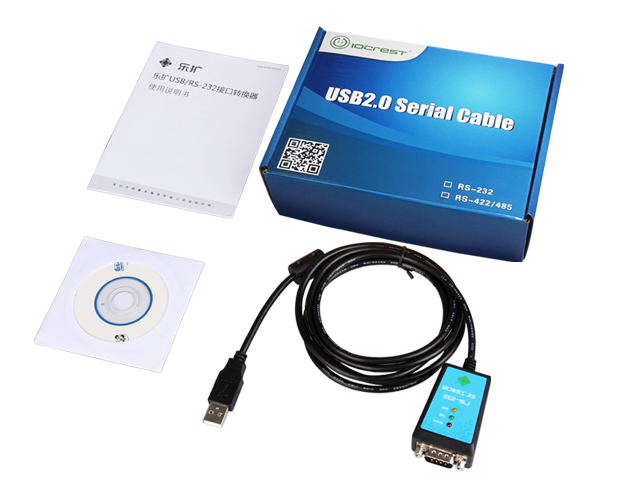

Package details
• 1×USB 2.0 to Serial Converter
• 1×User Manual
