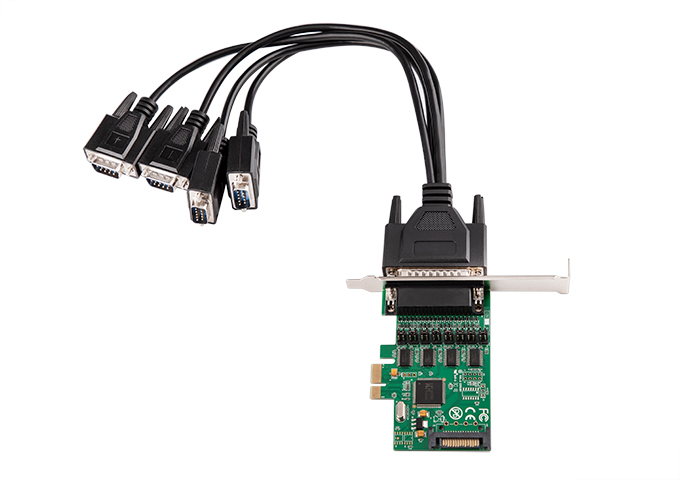

Lekuo 4-Port RS-232 PCIe Serial Card with Fan-Out Cable

Model

IO-PCE384P-PR4S

Chipset

WCH384

Interface

PCIe x1、x4、x8、x16

Data Transfer Rate

Up to 921.6Kbps per port

Serial Ports

4 x DB9 male connectors (RS-232)

UART

Compatible with 16C550, 16C552, 16C554, 16C750 standards

FIFO Buffer

256-byte FIFO with 4 trigger levels

Supported Signals

CTS, DSR, RI, DCD, DTR, RTS

Baud Rate

Programmable from 115.2 Kbps to 8 Mbps (note: specs mention up to 921.6 Kbps and programmable rates)

Power Supply

DB9 pin 1 and pin 9 configurable power output (+5V/+12V)

ESD Protection

±15 kV built-in

Operating Temperature

Not specified

Storage Temperature

-20°C to 85°C

System Compatibility

Windows 2000/XP/Server 2003/Vista/7/8/10 (32/64-bit), Linux

Dimensions

94 x 63 mm

Accessories

Short bracket

Features
•Compliant with PCI Express Base Specification 1.1.
•Supports x1, x2, x4, x8, x16 (lane) PCI Express Bus connector keys.
•Support 4 x UART serial ports
•128-bype deep transmit/receive FIFOs
•Data transfer rate up to 230400bps
•Optional RS-232 signal or power output to serial device
•Provides 5VDC or 12VDC power output via pin 1
•Provides 5VDC or 12VDC power output via pin 9
•Plug-n-Play, I/O address and IRQ assigned by BIOS.

System Requirements
•Windows98/98e/ME
•Windows 32bit 2000/XP/2003 Server/Vista/7 & Windows 64bit XP/2003 Server/Vista/7/8
•Linux Kernel 2.4 & 2.6
One available PCI Express slot

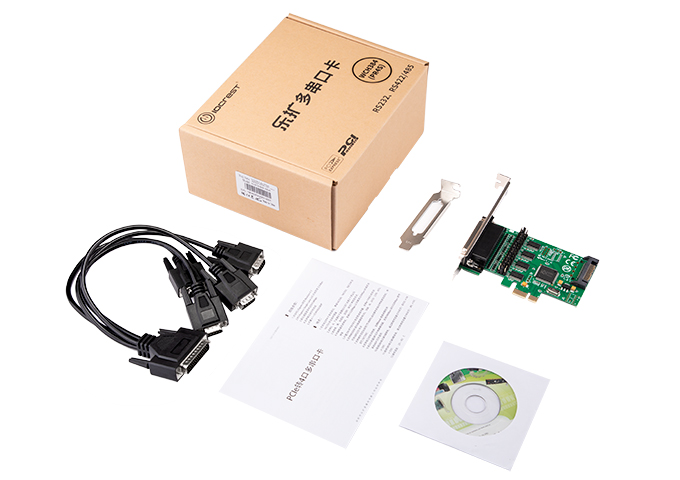

Package Contents
•1 x Powered RS-232 4-Port PCIe Card
•1 x User Manual

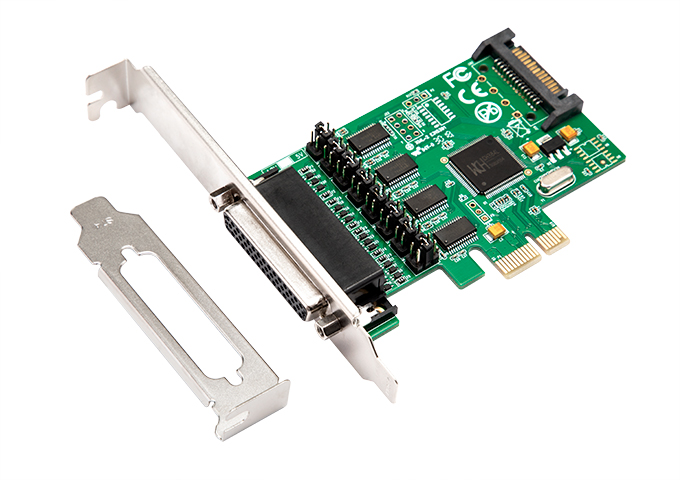

•1 x Low Profile Bracket

Note: Contents may vary depending on country/market.

Related Downloads

Driver Download

1. IO-PCE384P-PR4S

Download
