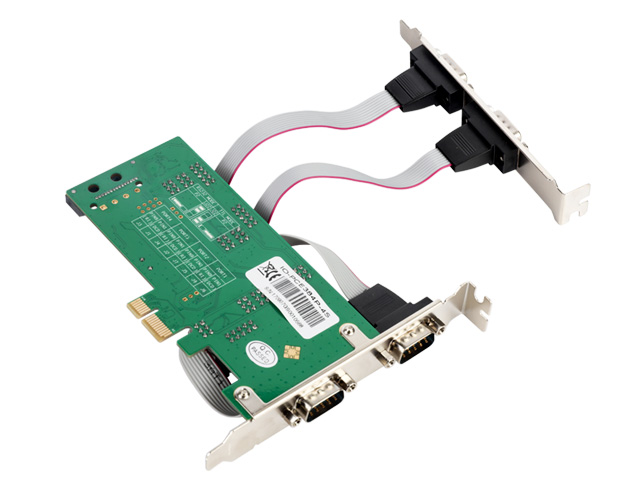

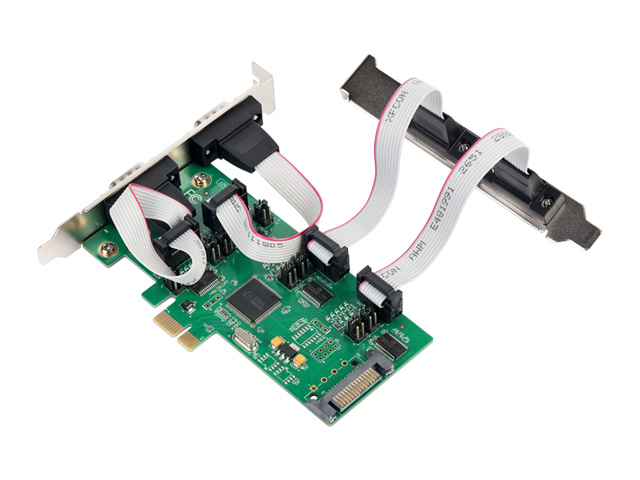

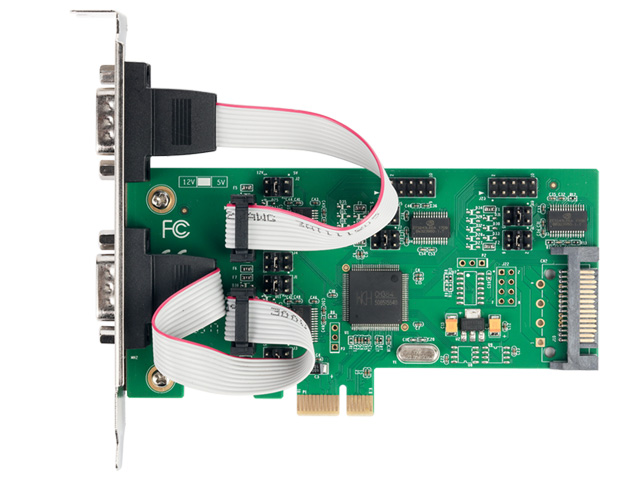

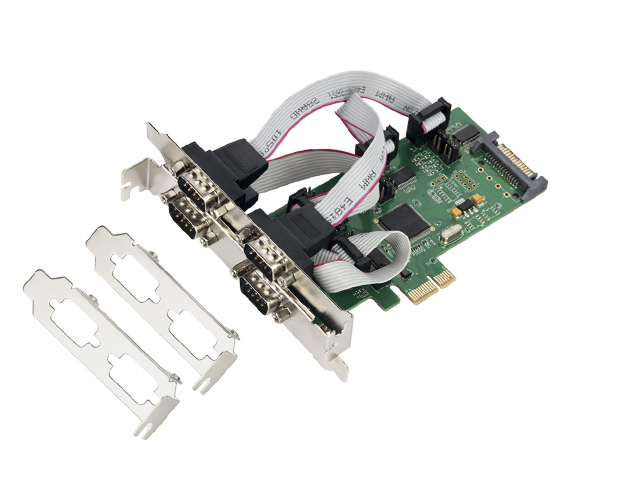

Lekuo 4-Port RS-232 PCIe Serial Card

Product Specifications

Product Description

Driver Download

Document Download

Q&A

Model

IO-PCE384P-4S

Chipset

WCH384

Interface

PCIe x1、x4、x8、x16

Data Transfer Rate

Up to 921.6Kbps (supports up to 8Mbps baud rate)

Serial Ports

4 x DB9 male connectors (RS-232)

UART

Compatible with 16C550, 16C552, 16C554, 16C750 standards, 256-byte FIFO

Supported Signals

CTS, DSR, RI, DCD, DTR, RTS

Baud Rate

Configurable up to 8Mbps

ESD Protection

±15kV ESD on all RS232 lines

Power Supply

SATA 15PIN interface for DB9 pin 1/9 power output (configurable)

Form Factor

123.9 x 65.1 mm

Compatible OS

Windows 10 (32/64-bit), Linux Kernel 3.10+, Kylin OS, UOS

Features

•Compliant with PCI Express Base Specification 1.1.

•Supports x1, x2, x4, x8, x16 (lane) PCI Express Bus connector keys.

•Support 4 x UART serial ports

•Built-in 16C550,16C552,16C554 compatible UART

•256-bype deep transmit/receive FIFOs

•Data transfer rate up to 230400bps

•Optional RS-232 signal or power output to serial device

•Provides 5VDC or 12VDC power output via pin 1

•Provides 5VDC or 12VDC power output via pin 9

•Plug-n-Play, I/O address and IRQ assigned by BIOS.

System Requirements

•Windows98/98e/ME

•Windows 32bit 2000/XP/2003 Server/Vista/7 & Windows 64bit XP/2003 Server/Vista/7/8/10

•Linux Kernel 2.4 & 2.6

One available PCI Express slot

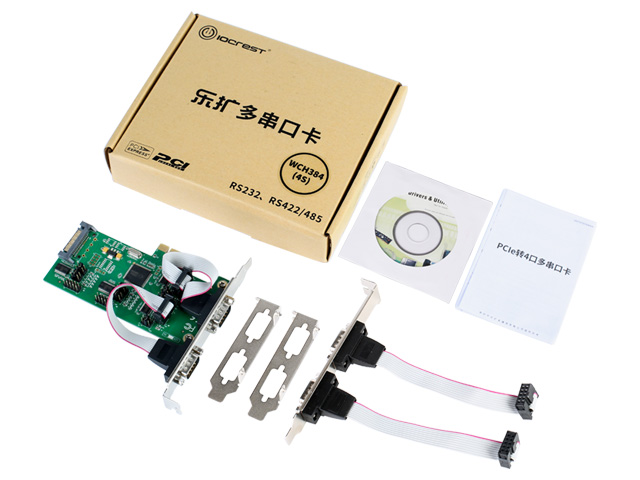

Package Contents

•1 x Powered RS-232 4-Port PCIe Card

•1 x User Manual

Note: Contents may vary depending on country/market.
