PCIe to 16 Ports RS232 Serial Controller Card with Fan out Cable,IO-PCE358-16S

PCIe 2.0 Gen 1 compliant,x1 Link, dual simplex, 2.5Gbps in each direction,Expansion bus interface,Up to 25 Mbps serial data rate,16 multi-purpose inputs/outputs (MPIOs).

Model：

IO-PCE358-16S

Input Interface：

PCIe

Output Interface：

RS232

Motherboard Slot：

PCIe

Transmission Rate:

921.6Kbps

Auxiliary Accessories:

Fan-out Cables,30-pin IDE Cable,Driver CD

Product Size:

100X120mm

Shopify Alibaba Aliexpress

Product Description

Product Specifications

Driver Download

Document Download

Q&A

Features
• PCIe 2.0 Gen 1 compliant
• x1 Link, dual simplex, 2.5Gbps in each direction
• Expansion bus interface
• Up to 25 Mbps serial data rate
• 16 multi-purpose inputs/outputs (MPIOs)
• 16-bit general purpose timer/counter
• Sleep mode with wake-up Indicator
• Operating temperature range:-40℃ to 85℃

• 16x Serial (16S) Model
• Supports 16 independent 9-pin RS232 Serial ports
• 256-byte TX and RX FIFOs
• Programmable TX and RX Trigger Levels
• TX/RX FIFO Level Counters
• Fractional baud rate generator
• Automatic RTS/CTS or DTR/DSR hardware flow control with programmable hysteresis
• Automatic Xon/Xoff software flow control
• Multi-drop with Auto Address Detection
• Infrared (IrDA 1.1) data encoder/decoder

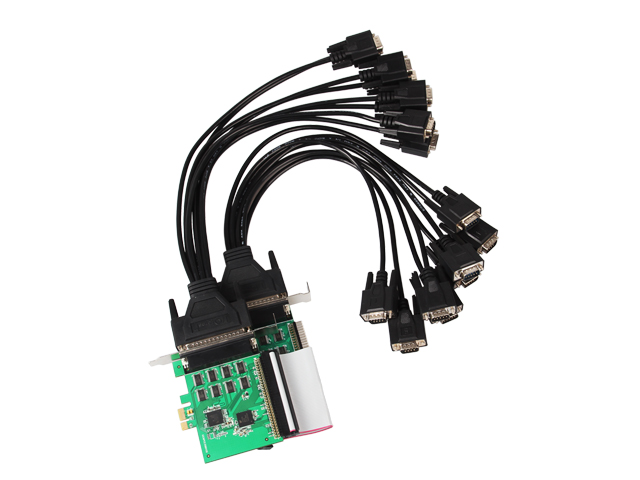

• Bundle with two 8-port (DB9) fan-out cable

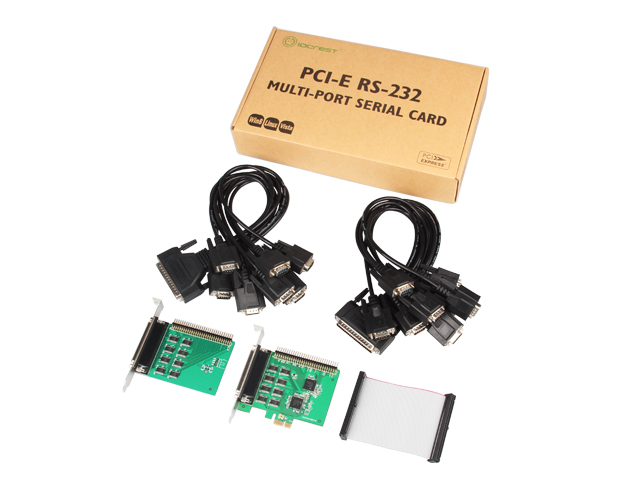

Packing Information

• 1X16-port PCI-e Controller Card
• 1XUser Manual
• 1X30-pin IDE Cable
• 1XDriver CD

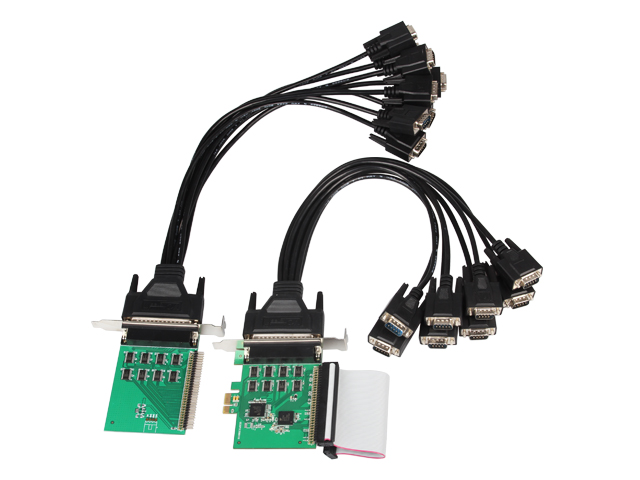

• 2XDB62 to DB9 Fan-out Cables (8 Serial Ports Each)
