Features
1. Integrated 10/100/1000M/2.5G transceiver
2. Supports 2.5G Lite (1G data rate) mode
3. Compliant with USB3.1 Specification Revision1.0
4. Supports USB 3.1,3.0, 2.0, and 1.1
5. Supports CDC-ECM
6. Supports CDC-NCM
7. Supports LPM (Link Power Management)
8. Supports pair swap/polarity/skew correction
9. Crossover Detection & Auto-Correction
10. Supports Wake-On-LAN and ‘RealWoW!’
11. Supports power down/link down power saving
12. Supports hardware CRC (Cyclic Redundancy Check) function
IEEE
• Compatible with IEEE 802.3, IEEE 802.3u, IEEE 802.3ab
• Supports IEEE 802.1P Layer 2 Priority Encoding
• Supports IEEE 802.1Q VLAN tagging
• Supports IEEE 802.3az (Energy Efficient Ethernet)
• Supports IEEE 802.3bz (2.5GBASE-T)
• Supports Full Duplex flow control (IEEE 802.3x)
Software Offload
Microsoft NDIS5, NDIS6 Checksum Offload (IPv4, IPv6, TCP, UDP) and Segmentation Task-offload (Large send v1 and Large send v2) support
• Supports jumbo frame to 16K bytes
• Supports Protocol Offload (ARP & NS)
Microsoft AOAC (Always On Always Connected)
• Supports 32-set 128-byte Wake-Up Frame pattern exact matching
• Supports link change wake up
• Supports Microsoft WPD (Wake Packet Detection)
Intel CPPM (Converged Platform Power Management)
• Supports L1 with 3ms BESL (USB 2.0)
• Dynamic LTM messaging (USB 3.0)
• Supports U1/U2/U3 (USB 3.0)
• Supports selective suspend

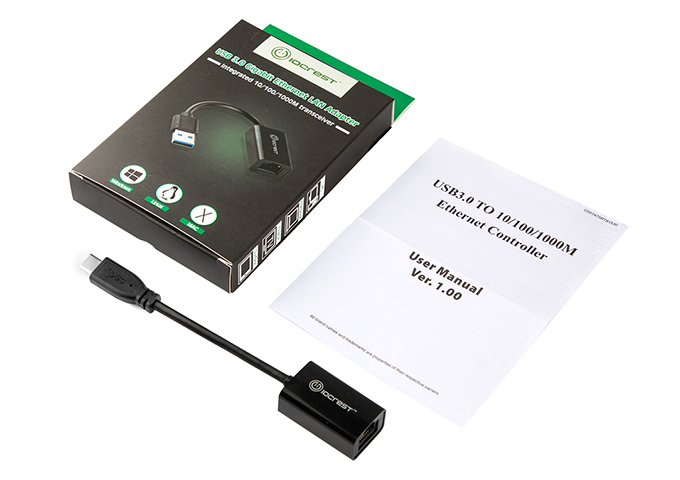

Package Contents
• 1x USB 3.0 Ethernet Adapter
• 1x Quick Installation Guide
System Requirements
Operating Systems：
Windows Server ,2008, 2012, XP, Vista, 7, 8,10,11, 32 and 64 bit
Linux kernel up to 5.6
Mac OS 10.8,10.9 to 10.15
One available USB port
