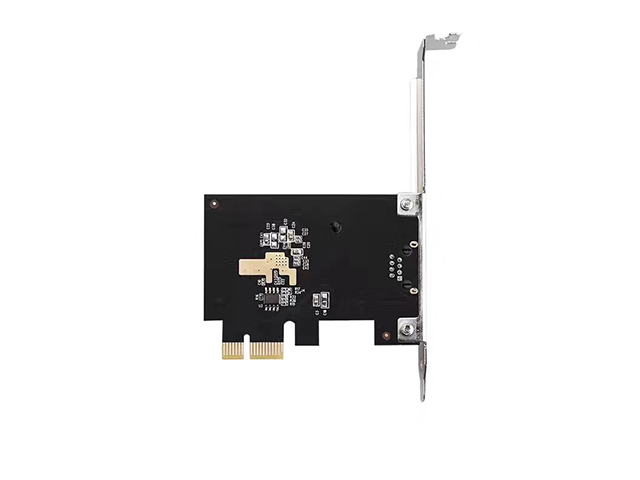

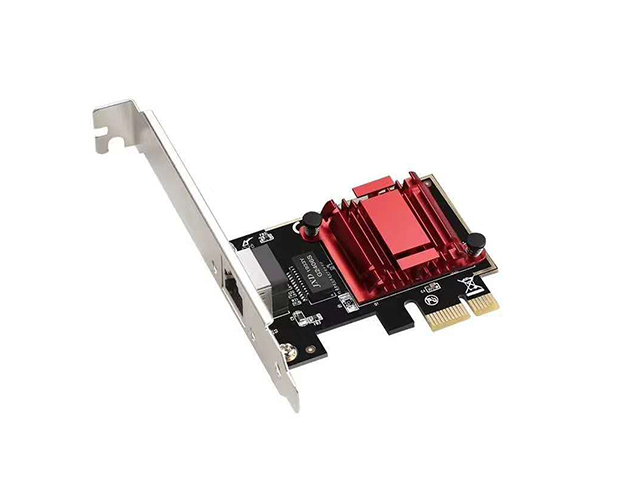

• The PCIe Gigabit Network Card adds a 10/100/1000 Mbps compatible RJ45 Ethernet port to a PCI Express-enabled client, server or workstation,providing a convenient addition or replacement networking interface.
• Compliant with IEEE 802.3/u/ab standards, and with support for 9.5K Jumbo Frames, VLAN tagging, this Gigabit NIC Adapter offers effective network performance
Features
• A single 10/100/1000 Mbps compatible RJ45 Ethernet port
• Gigabit Speed and Link/Activity LED indicators
• Fully Compliant with IEEE 802.3, IEEE 802.3u, IEEE 802.3x and IEEE 802.3ab standards
• Supports IEEE 802.1Q VLAN tagging, and IEEE 802.3x Fully Duplex Flow Control
• Full and half duplex support
• PXE network boot support
• Jumbo frame supports up to 9.5Kbytes
• Complies with Microsoft and Linux platforms
Specification
• Bus Type：PCI Express 2.1 (2.5 GT/s)
• Bus Width ：x1 lane PCI Express, operable in x1, x4, x8 and x16 slots
• Chipset ID : Intel – I210
• Industry Standards : IEEE 802.3, IEEE 802.3u, IEEE 802.3x, IEEE 802.3ab
• Interface : 1x RJ45
• Power Consumption：1Gbps – 594mW
• Indicators LED Indicators：1 – 1G Speed LED (Green)、1 – Link/Act (Green)
• Humidity ：20~80% RH
• Operating ：Temperature 5°C to 50°C (41°F to 122°F)
• Storage Temperature： -25°C to 70°C (-13°F to 158°F)
System Requirements
• Windows® 7, 8.x, 10
• Windows Server® 2008 R2, 2012, 2016
• Linux 2.6.x to 4.x
• PCI Express enabled computer with an available PCI Express x1 slot
Gen 2.0 or higher (x1, x4, x8, x16)
Package Content
• 1 x Gigabit Ethernet PCI Express Card
• 1 x Low Profile Bracket
