Specifacation

•1-Lane M.2 PCI-Express 2.0 interface (B + M Key).

•Support communication speed of 2.5Gbps and 5.0Gbps.

•Compliant with Bus Master Programming interface for IDE ATA Controllers Revision 1.0.

•Compliant with Serial ATA AHCI (Advanced Host Controller Interface) Specification Rev 1.3.

•Support Message Signaled Interrupt(MSI).

•Supports SATA 3.0 transfer rate up to 6Gbps.

•Support communication speed of 6.0Gbps,3.0Gbps,1.5Gbps.

•Support programmable transmitter signal levels.

•Supports Gen1m and Gen2m SATA PHY.

•Support two SATA Ports.

•Supports Native Command Queuing (NCQ)

•Support Port Multiplier

•Supports Hot Plugging on SATA port

System Requirements:

•Windows Server 2003,2008,2012,2016

•Windows  XP, Vista, 7, 8,8.1,10

•Linux 2.6.20 and above

•Mac OS 10.3 or later version

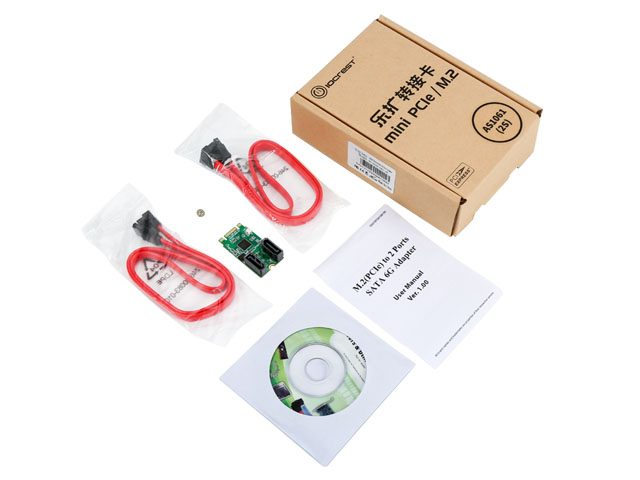

Package Contents

•1 x M.2(PCIe) to SATA 6G adapter

•1 x User Manual

•1 x Driver CD

•1 x SATA Cable

Note: Contents may vary depending on country and market.
