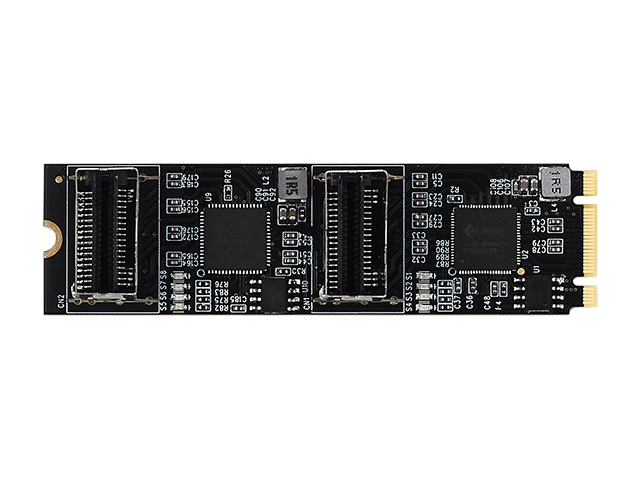

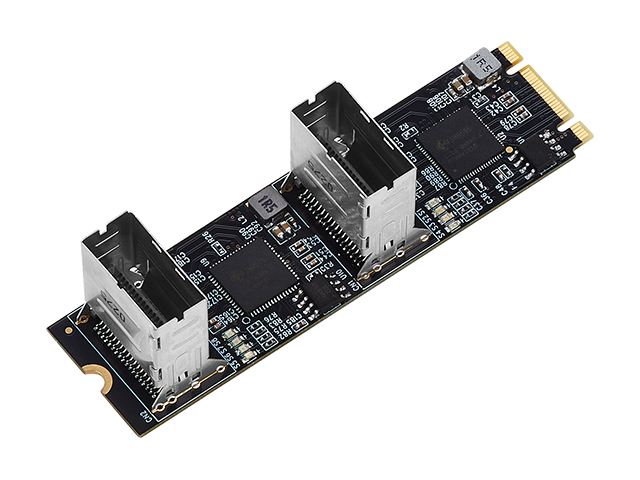

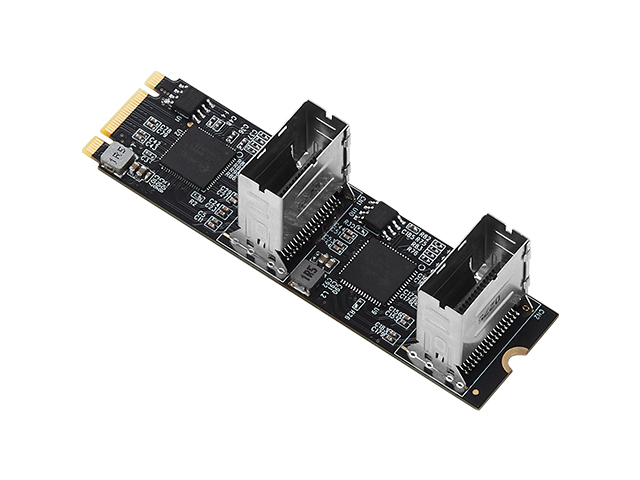

Lekuo M.2 PCIe to 8-Port SATA 6G Adapter Card

Model

IO-M2F588-8I

Chipset

JMB585 + JMB575

Interface

M.2 PCIe 3.0 x2 (B & M Key)

Data Transfer Rate

SATA III up to 6Gbps per port

Number of Ports

8 x SATA Ports (via 2 x Mini SAS cables)

Supported Features

AHCI Mode, Port Multiplier, NCQ, Power Saving, Staggered Spin-Up

Supported Protocol

SATA 3.2

Power Management

Supports SATA Partial / Slumber State

Form Factor

22mm (W) x 80mm (L)

OS Compatibility

Windows 7/8/10 (x86/x64), Linux

Accessories Included

User Manual, 2 x Mini SAS to 4*SATA Cables

Features
• 2-Lane M.2 PCI-Express 3.0 interface (B & M Key).
• Complies with PCI Express Base Specification Revision 3.1a.
• Supports PCIe link layer power saving mode.
• Supports command-based and FIS-based for Port Multiplier.
• Complies with SATA Specification Revision 3.2.
• Supports 8 SATA port.
• Supports Port Multiplier
• Supports AHCI mode and IDE programming interface.
• Supports Native Command Queue (NCQ).
• Supports SATA link power saving mode (partial and slumber)
• Supports SATA plug-in detection capable.
• Supports drive power control and staggered spin-up.
• Supports SATA Partial / Slumber power management state.
Note: Does not support RAID on Port Multiplier.

System Requirements
• Windows 7 (X86/X64)
• Windows 8/8.x / 10 (X86/X64) (Windows in-box driver)
• Linux-base OS

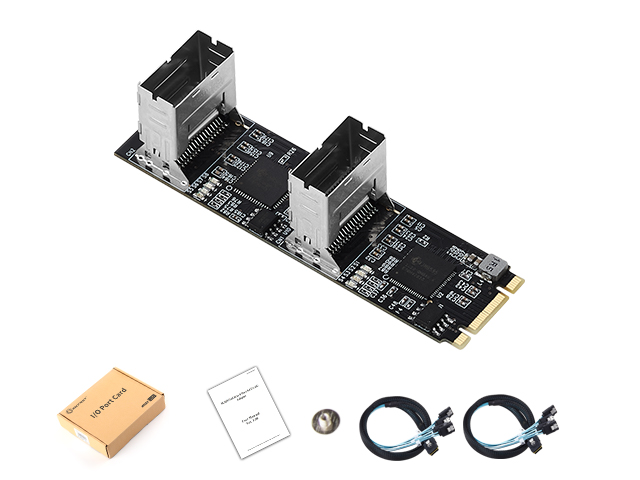

Package Contents
• 1 x M.2(PCIe3.0) to 8 SATA 6G Adapter
• 1 x User Manual

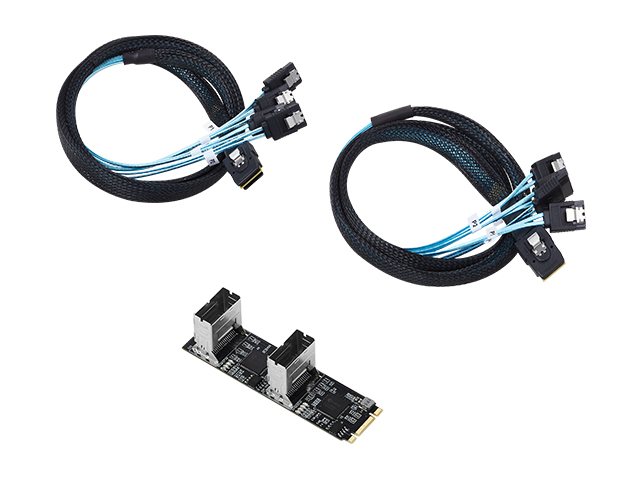

• 2 x MINI SAS to 4*SATA Cable
Note: Contents may vary depending on country/market
