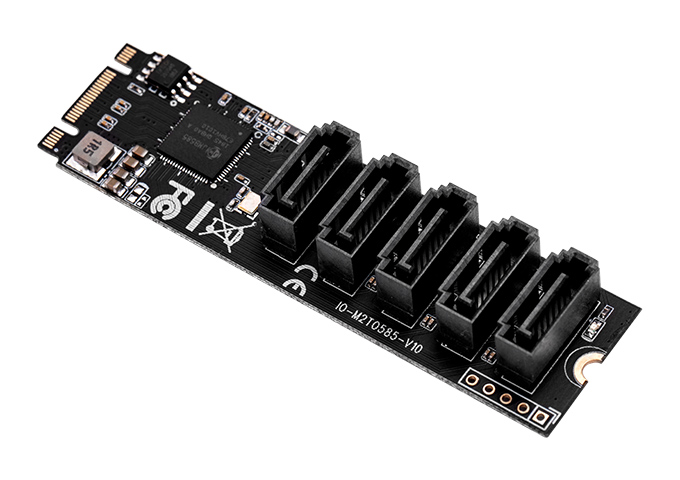

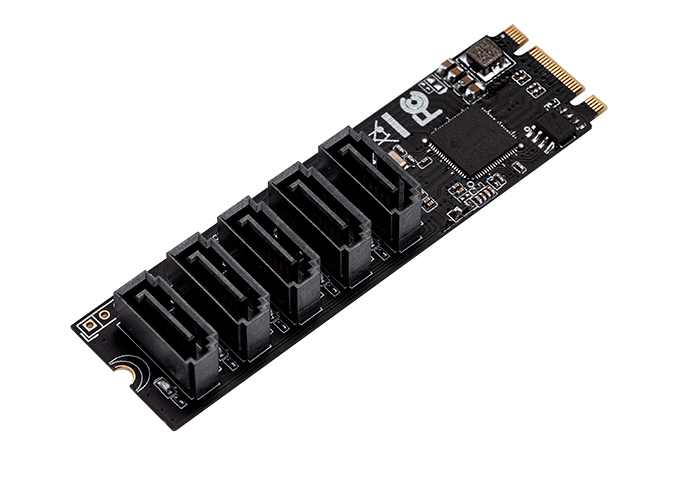

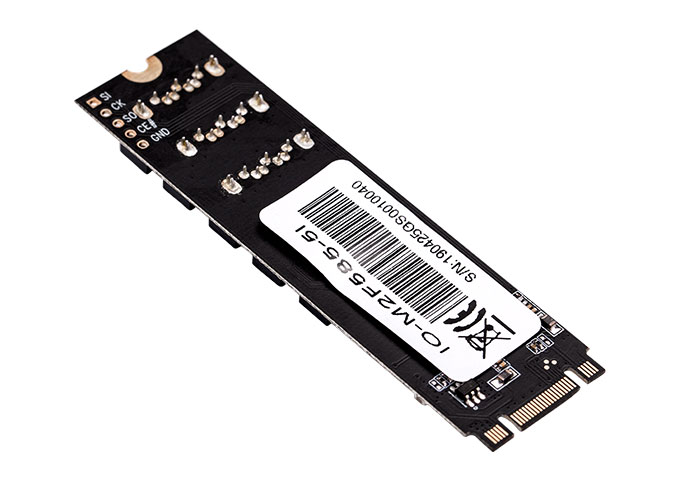

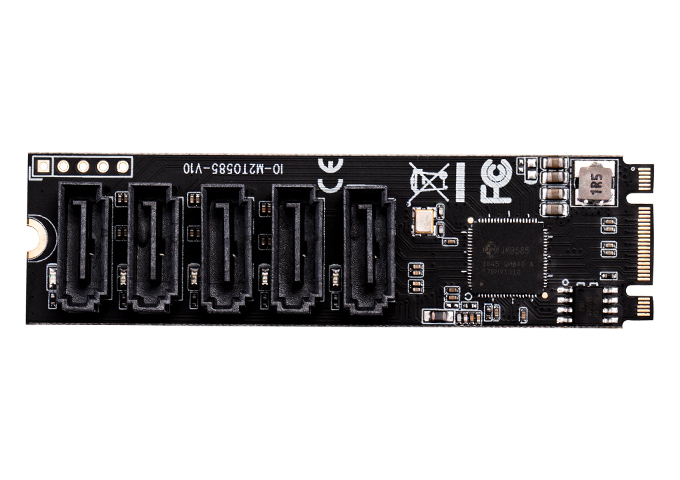

Lekuo M.2 to 5-Port SATA 6G Adapter Card

Model

IO-M2F585-5I

Chipset

JMB585

Interface

M.2 PCIe 3.0 x2 (B & M Key)

Compliance

PCI Express 3.1a, SATA 3.2

Number of Ports

5 x SATA 6Gbps

Transfer Rate

Up to 16Gbps aggregate

Supported Features

AHCI, NCQ, Port Multiplier, Staggered Spin-up, Power Saving (Partial/Slumber), Plug-in Detection

Dimensions

22(W) x 80(L) mm

OS Compatibility

Windows 7/8/10 (x86/x64), Linux-based OS

Accessories

1 x M.2 to SATA Adapter, 3 x SATA Cable, 1 x User Manual

Features

• 2-Lane M.2 PCI-Express 3.0 interface (B & M Key).

• Complies with PCI Express Base Specification Revision 3.1a.

• Supports PCIe link layer power saving mode.

• Supports command-based and FIS-based for Port Multiplier.

• Complies with SATA Specification Revision 3.2.

• Supports 5 SATA port.

• Supports AHCI mode and IDE programming interface.

• Supports Native Command Queue (NCQ).

• Supports SATA link power saving mode (partial and slumber)

• Supports SATA plug-in detection capable.

• Supports drive power control and staggered spin-up.

• Supports SATA Partial / Slumber power management state.

• Supports Port Multiplier.

System Requirements

• Windows 7 (X86/X64)

• Windows 8/8.x / 10 (X86/X64) (Windows in-box driver)

• Linux-base OS

• UEFI

Note: Does not support RAID on Port Multiplier.

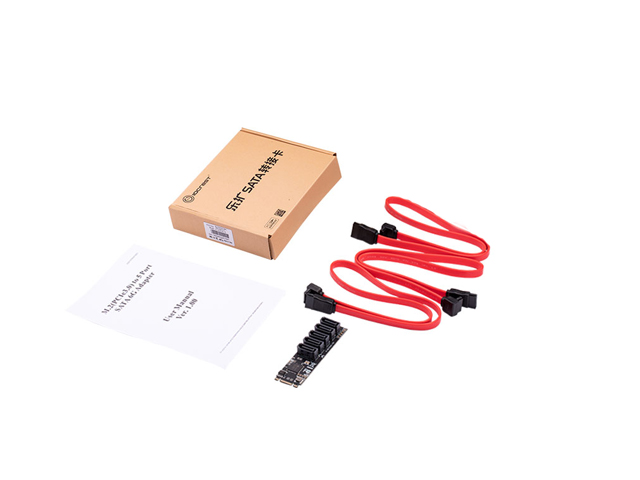

Package Contents

• 1 x M.2(PCIe3.0) to SATA 6G Adapter
• 1 x User Manual
• 3 x SATA Cable

Note: Contents may vary depending on country/market

Related Downloads

Driver Download

1. IO-M2F585-5I

Download

❓ Why does the system get stuck at the detection screen and fail to boot after inserting the card?

✅

1. Enable CRM in the BIOS settings.

2. Change the slot and use an eraser to clean the card's gold fingers.

❓ Does this expansion card support pass-through in unRAID?**

✅ It supports pass-through to Synology virtual machines in unRAID, with normal driver-free recognition.

❓ Does this expansion card support Black Synology (Black群晖)?**

✅Yes, it supports Black Synology with driver-free operation.

❓ My host is running ESXi 6.7. Is it compatible? How many SATA ports are supported?**

✅ Yes, ESXi 6.7 recognizes it normally and supports pass-through without needing drivers. It supports 5 SATA ports.

❓ Is it compatible for building a NAS + Soft Router on the ESXi platform?**

✅ It is fully compatible. It is driver-free and easy to use. The BIOS can directly recognize the connected hard drives. For NAS, it can expand up to 5 SATA ports at once.

❓ Hi, after inserting the card, ESXi fails to enter the backend. Removing the card allows it to boot normally. Why is that? Do I need to install additional drivers in Linux?**

✅ Linux supports driver-free operation.

Check if the system has enabled the setting to skip ACS (Access Control Services) checks for all PCI devices and set it to true.

Change the slot.

Check if the PCIe address of the network card is occupied.

❓ Why can't the hard drive be detected, and why does it show a yellow exclamation mark after installing the driver?

✅

1. Uninstall the existing device and driver, then re-download and install the driver, followed by a reboot.

2. Change the slot and use an eraser to clean the card's gold fingers.
