深圳市乐扩多媒体有限公司

Features:

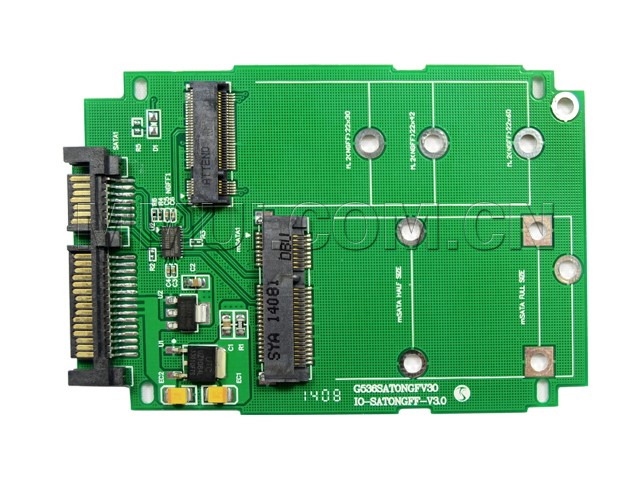

M.2(NGFF) & mSATA SSD to SATAIII card;
M.2 specification revision 0.9;
Serial ATA Spec. Revision 3.2;
Supports M.2 card size: 22*30, 22*42, 22*60;
Supports mSATA SSD size:26.8*30,50.95*30;
Supports M.2 B Key Card Type ;
Supports high-speed SATA3/6 Gbps interface.
52-pin mini PCI-e interface;
Compatible with SATA revision 2.6;
Support ATA/ATAP-7 specification;
Power supply system using:3.3V and 1.8V.
Port: standard SATA 22 pin connector
An M.2 SSD will always be the first priority. When both an M.2 and mSATA device are connected the mSATA will not function.
Note: The efficiency mainly depends on M.2(NGFF) & mSATA SSD master IC and the size of the capacity

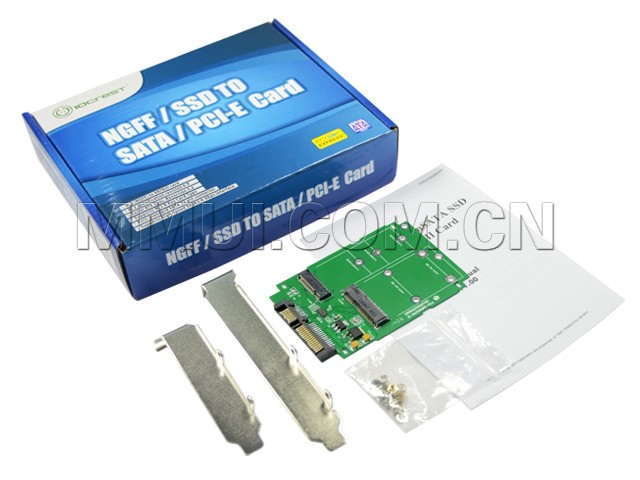

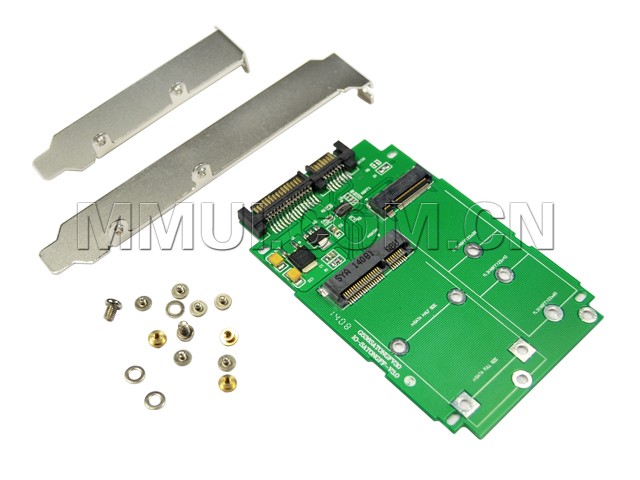

Package details

1¡ÁM.2 (NGFF) & mSATA SSD TO SATA III Card

1¡ÁUser Manual

1¡ÁLow Profile Bracket

1¡ÁStandard Profile Bracket

1¡ÁScrews

System Requirements
MS Windows, Mac OS, Linux operating system
