Description

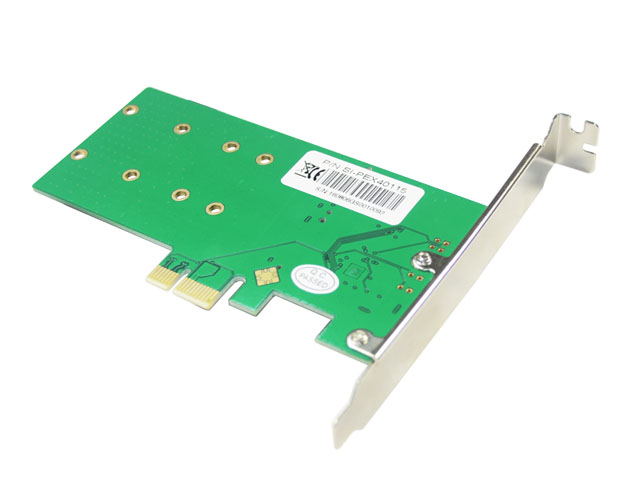

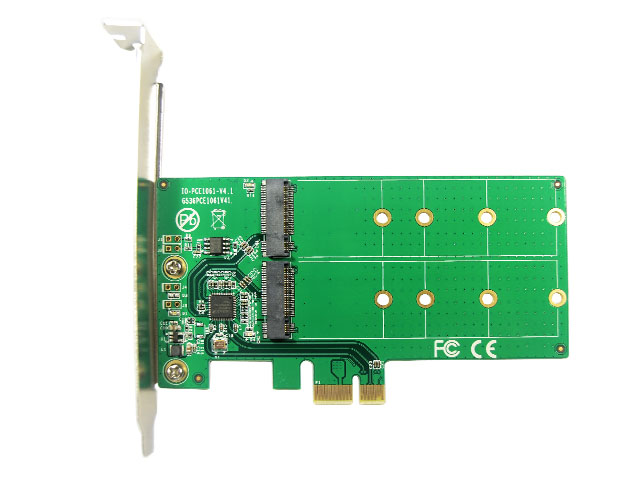

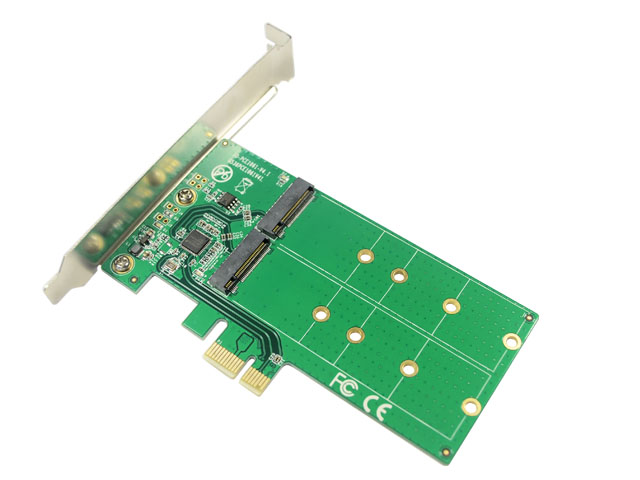

•The PCI Express card expands your PC by two M.2 NGFF
slots. You can connect up to two M.2 NGFF modules in format 2280, 2260,
2242 and 2230.
Features
•Compliant with PCI Express Base Spec. Revision 2.0 backward compatible to Revision 1.0a
•Fully compliant with Serial ATA specifications 3.0
•Compliant with Serial ATA AHCI (Advanced Host Controller Interface) Specification Rev 1.0
•Compliant with Bus Master Programming interface for IDE ATA Controllers Revision 1.0
•PCI Express M.2 specification 1.0
•Supports Native Command Queue (NCQ)

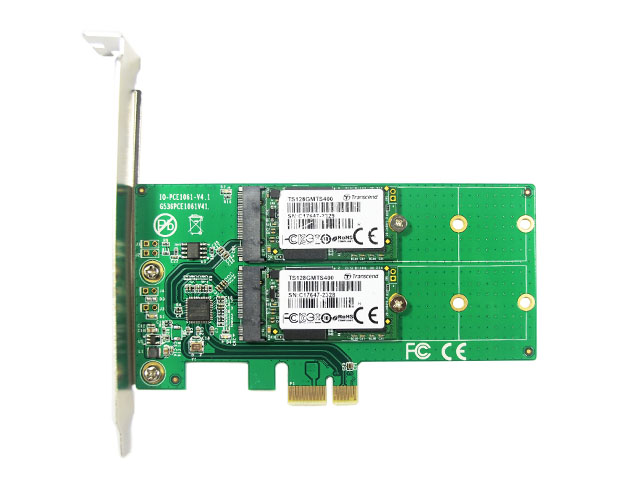

•Supports 6Gbps, 3Gbps SATA based M.2 NGFF 80mm, 60mm, 42mm, 30mm SSD
•Supports M.2 NGFF modules in format 2280, 2260, 2242 and 2230 with key B or key B+M based on SATA
System Requirement
•Require an empty PCIex1orx2or x4 or x8 or x16 slot in computer
•Windows® 10/8/7 (32 / 64 bit) / Vista / Server 2003 / XP / 2000 Linux：2.6.20 above

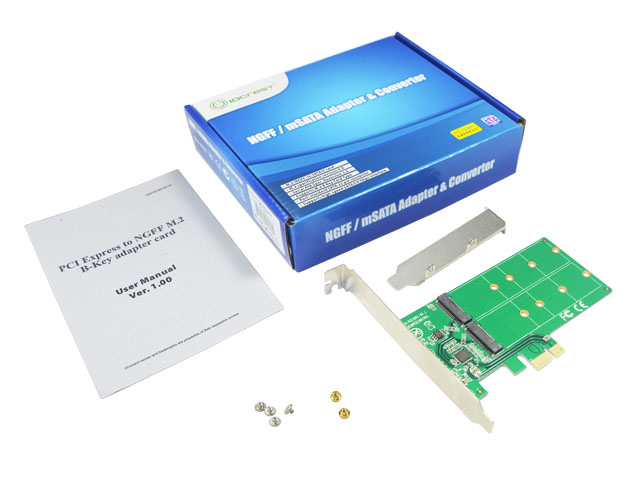

Package Content
•1 x PCI Express to NGFF M.2 Key-B adapter card
•1 x User Manual
•1 x Software Driver CD
•4 x NGFF M.2 SSD mounting screws

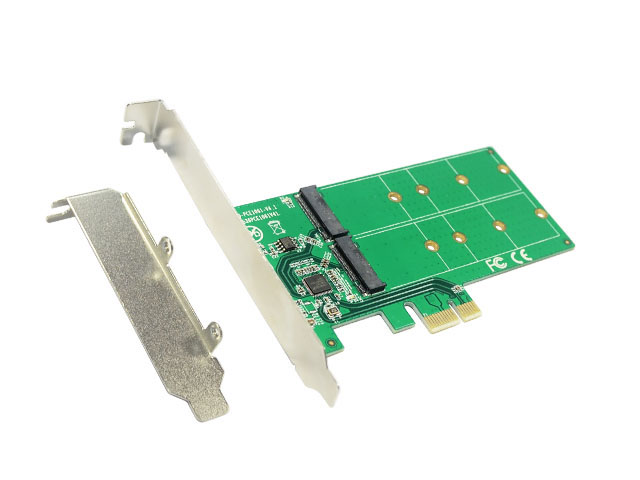

•1 x Low profile bracket
Note:The maximum throughput of this card is limited by the bus interface.
•1.If used with PCI Express Gen 1.0 enabled computers, the max throughput is 2.5Gbps per lane.
•2.If used with PCI Express Gen 2.0 enabled computers, the max throughput is 5Gbps per lane.
