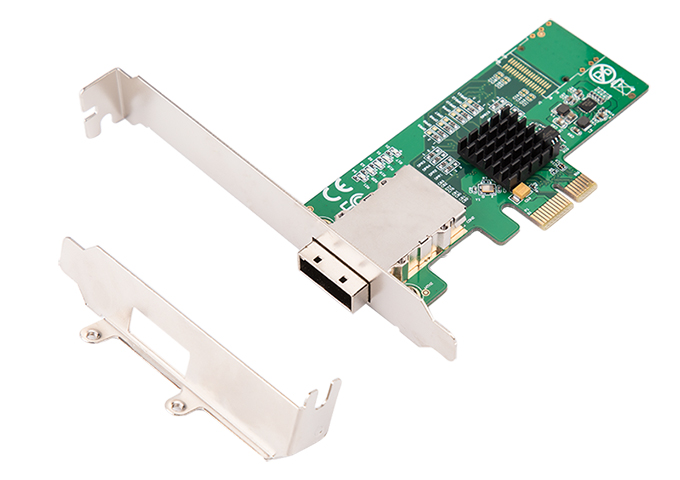

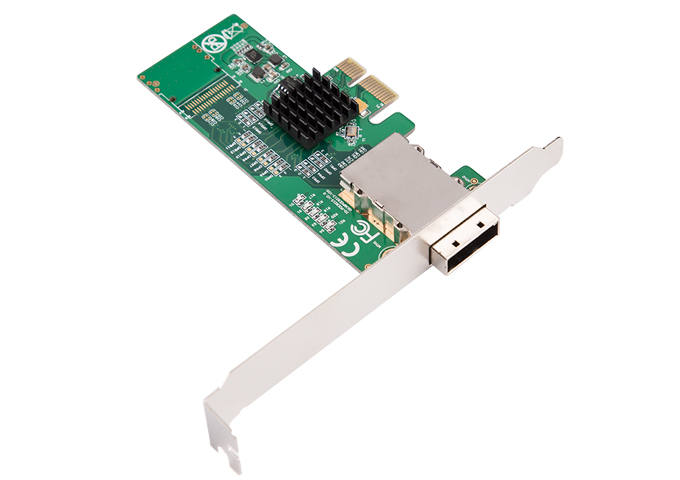

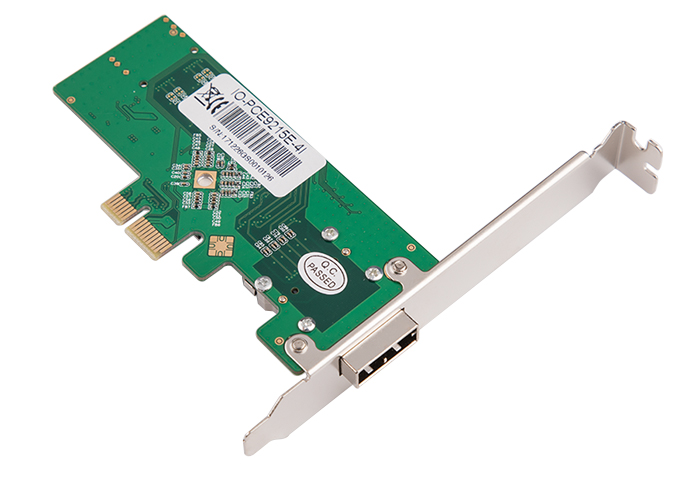

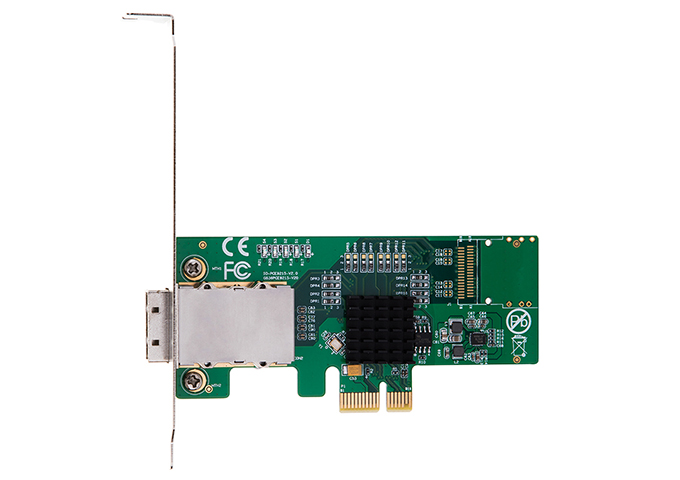

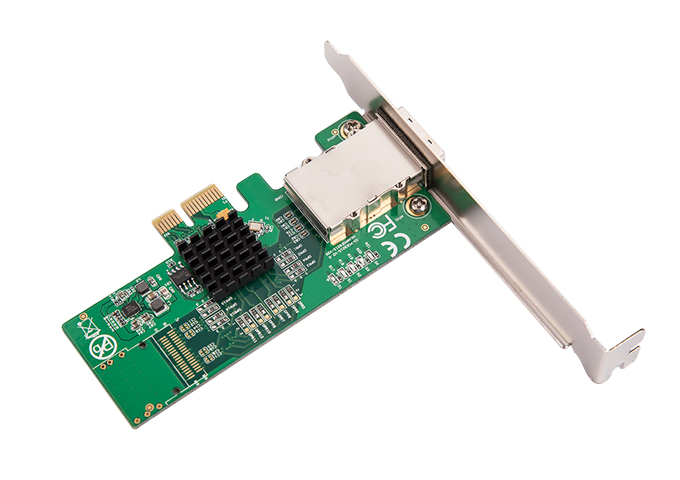

PCIe to 4 Ports SATA Card,IO-PCE9215E-4I

Compatible with PCIe 2.0 specifications,Compliant with Serial ATA Specification 3.1 ,external SFF8088 interface,Supports communication speeds of 6.0 Gbps, 3.0 Gbps, and 1.5 Gbps.
Model:
IO-PCE9215E-4I
Input Interface:
PCIe
Output Interface:
SATA
Motherboard Slot:
PCIe
Transmission Rate:
6Gbps
Auxiliary Accessories:
Low profile bracket,Driver CD
Product Size:
Product Description
Product Specifications
Driver Download
Document Download
Q&A

Features
•Compatible with PCIe 2.0 specifications
•Compliant with Serial ATA Specification 3.1
•external SFF8088 interface
•Supports communication speeds of 6.0 Gbps, 3.0 Gbps, and 1.5 Gbps
•Supports Hot plug and Hot Swap.
•Supports Native Command Queue (NCQ)
•Supports AHCI 1.0 programming interface registers for the SATA controller
•Supports aggressive power management
•Supports error reporting ,recovery and correction
•Supports Message Signaled Interrupt (MSI)
•Supports Programmable transmitter signal levels
•Supports Port Multiplier FIS based switching or command based switching.
•Supports Partial and Slumber Power Management states
•Supports SATA Gen 1i, Gen 1x, Gen 2i, Gen 2m, Gen 2x, and Gen 3i
•Supports Staggered Spin-up
Note: Not Supported RAID on PM


System Requirement
•Computer system with one PCI-Express slot available
•Supports Windows® XP/Vista/7/8/8.1/10 Server2003/2008R2,2016,2019, Linux 2.6.x and above

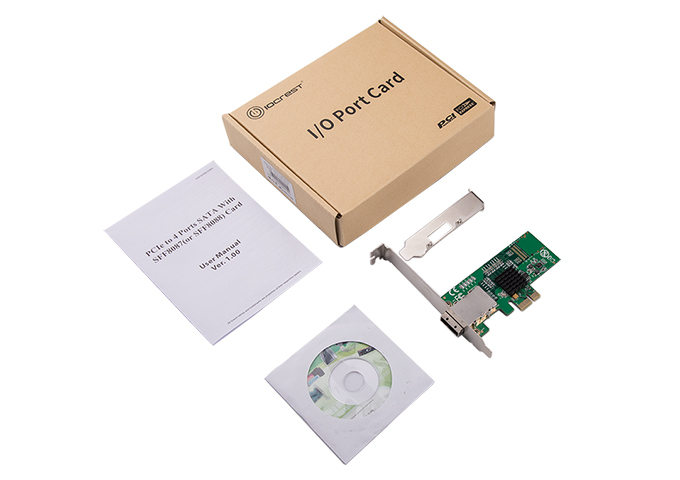

Package Content
1 x PCI-Express to 4 Ports SATA with Card
1 x User Manual

1 x Low Profile bracket

1 x Driver CD
Note: Contents may vary depending on country/market
