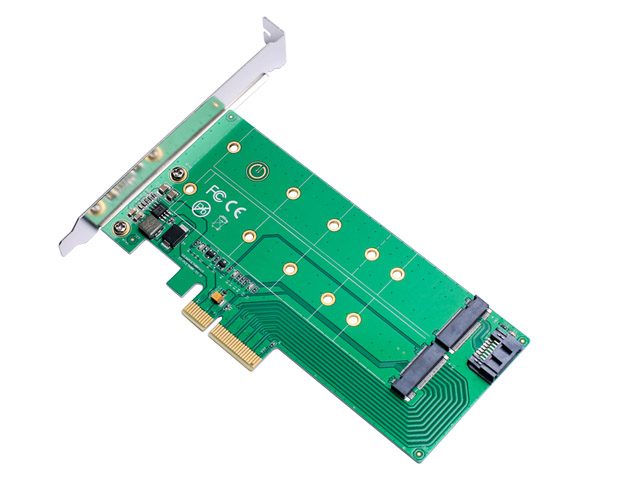

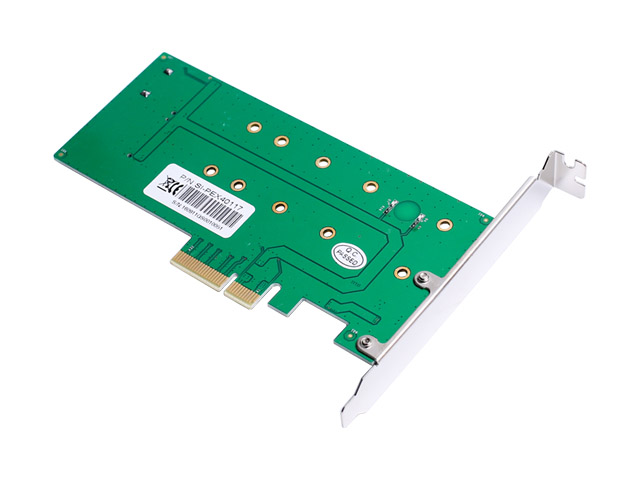

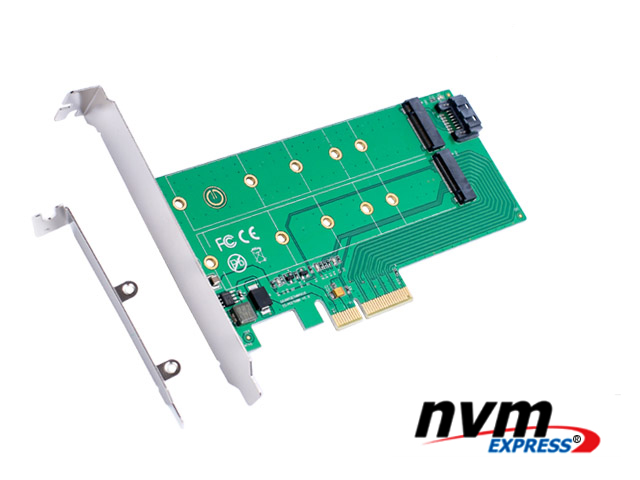

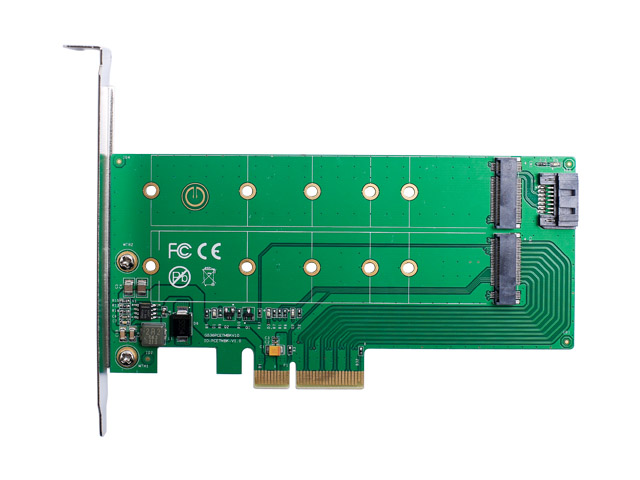

PCIe x 4 to NVMe(PCIe) SSD+SATA to NGFF(SATA)adapter card Dual voltage power supply,IO-PCE4X-NS

Supports PCIe x4 or x8 or x16 slot,Compliant with PCI Express M.2 specification 1.0,Compliant with SATA III specification,Serial ATA Spec. Reversion 3.2,Supports data transfer up to 6.0Gb/s
Model:
IO-PCE4X-NS
Input Interface:
PCIe+SATA
Output Interface:
M.2
Motherboard Slot:
PCIe
Transmission Rate:
6Gbps
Auxiliary Accessories:
SATA Cable
Product Size:
Product Description
Product Specifications
Driver Download
Document Download
Q&A

Features
• Supports PCIe x4 or x8 or x16 slot
• Compliant with PCI Express M.2 specification 1.0
• Compliant with SATA III specification
• Serial ATA Spec. Reversion 3.2
• Supports data transfer up to 6.0Gb/s
• Connects SATA motherboard to NGFF B Key SSD
• Connects PCIE motherboard to NVMe M Key SSD
• Supports SATA-based NGFF SSD
• Supports 2230, 2242, 2260, 2280 and 22110 size SSD
• One NGFF M.2 B Key socket and one NVMe M.2 M Key socket available
• 5 screw holes 2230/2242/2260/2280/22110 available to fix SSD card
• 5 screw holes available to fix PCB board
• Easy installation & no driver required
System Requirements
• Supports any OS, like Windows, Win CE and Linux etc

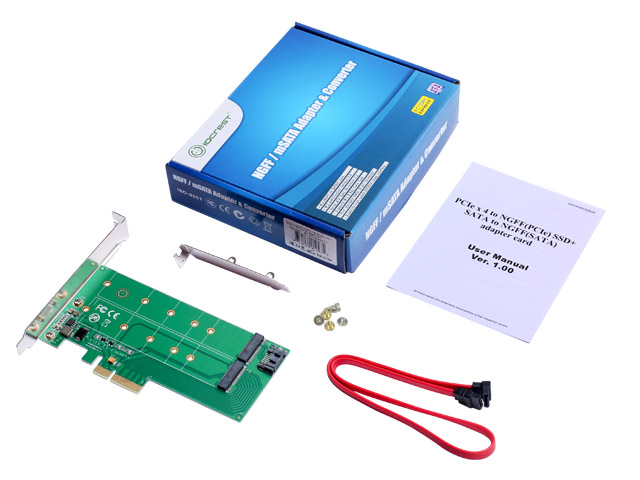

Package Contents
• 1 x PCIE X4 to NVMe(PCIe) SSD+SATA to NGFF(SATA)adapter Card
• 1 x User Manual
• 1 x SATA Cable
• 2 x Screw Drive
• 4 x M.2 SSD mounting screws
Note: Contents may vary depending on country and market.
