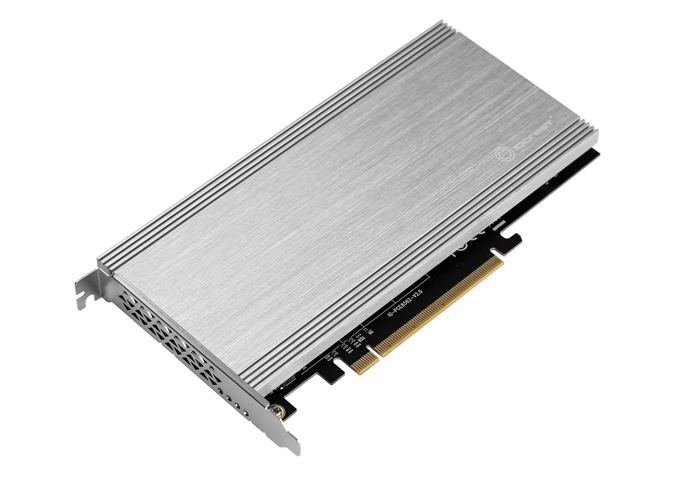

PCIe3.0x16 to 4x M.2 NVMe Adapter Card,IO-PCE34M2-01

Features

• New two-phase power solution with up to 19.8 Watt output supports the latest NVMe drives.

• Large heatsink reduces M.2 SSD temperatures for unthrottled transfer speeds and enhanced reliability.

• Support for up to four PCIe 3.0 M.2 drives with transfer bandwidth up to 128Gbps.

• Intel VROC technology and AMD Ryzen Threadripper support enables creation of bootable NVMe RAID arrays using CPU PCIe lanes.

• Supports PCIe x16 slot

• Support PCIe 3.1,3.0, PCIe 2.0 motherboard

• Compliant with PCI Express M.2 specification 1.0,1.1

• Supports data transfer up to 2.5Gb(250MB/s),5Gb(500MB/s),8Gb(1GB/s)

• Connects PCIE motherboard to NGFF M Key SSD

• Supports 2230, 2242, 2260, 2280 size NGFF SSD

• Supports four NGFF M.2 M Key socket available

• 4 screw holes 2230/2242/2260/2280 available to fix NGFF SSD card

• 4 screw holes available to fix PCB board

• Easy installation & no driver required

Ps. Motherboards and BIOS without bifurcation support can only recognize one module.

System Requirements

• Windows

• Linux

• PC with one free PCI Express x16 / x32 slot

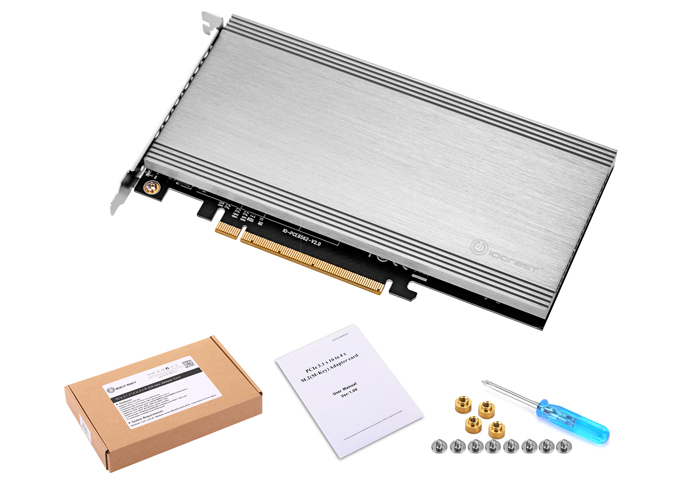

Package Contents

• 1 x PCIe x 16 to 4 x M.2(M-Key) card

• 1 x User Manual

• 1 x M.2 Mounting material

• 1 x Screwdriver

• 4 x self-adhesive thermal pad

Note: Contents may vary depending on country and market.
