Features
• Supports 4 NVMe M.2 (2242/2260/2280/22110) up to 256Gbps in one card by utilizing PCle 4.0 bandwidth
• PCIE 4.0 X16 Interface with server-grade (low loss) PCB material, compatible with PCI express x8 and x16 slots .
• Supports 14W power consumption SSDs for next gen latest drives
• Stylish heatsink and integrated blower style fan prevent M. 2 throttling
• Supports PCIe x16 slot
• Support PCIe 4.0,3.1,3.0, PCIe 2.0 motherboard
• Compliant with PCI Express M.2 specification 1.0,1.1
• Supports data transfer up to 2.5Gb(250MB/s),5Gb(500MB/s),8Gb(1GB/s),16Gb(2GB/s)
• Connects PCIE motherboard to NGFF M Key SSD
• Supports 2230, 2242, 2260, 2280 size NGFF SSD
• Supports four NGFF M.2 M Key socket available
• 4 screw holes 2230/2242/2260/2280 available to fix NGFF SSD card
• 4 screw holes available to fix PCB board
• Easy installation & no driver required
Ps. Motherboards and BIOS without bifurcation support can only recognize one module.
System Requirements
• Supports Windows,Linux
• PC with one free PCI Express x16 / x32 slot

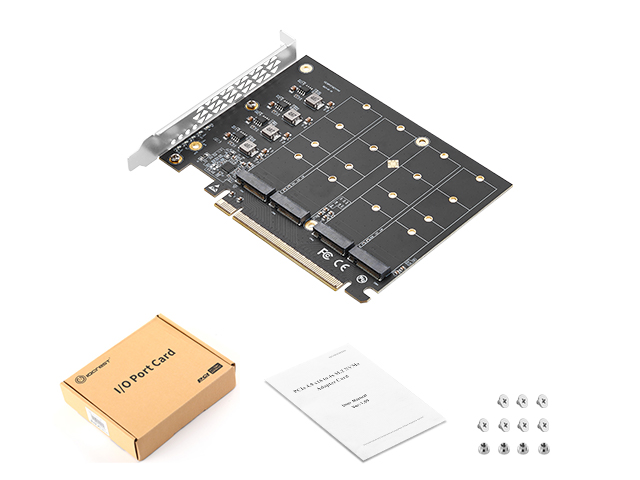

Package Contents

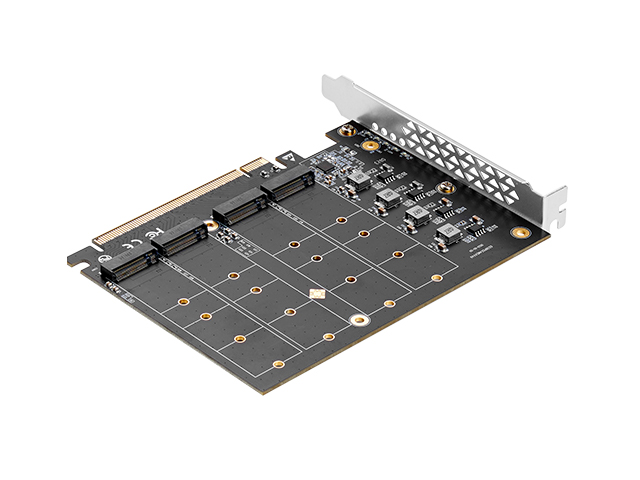

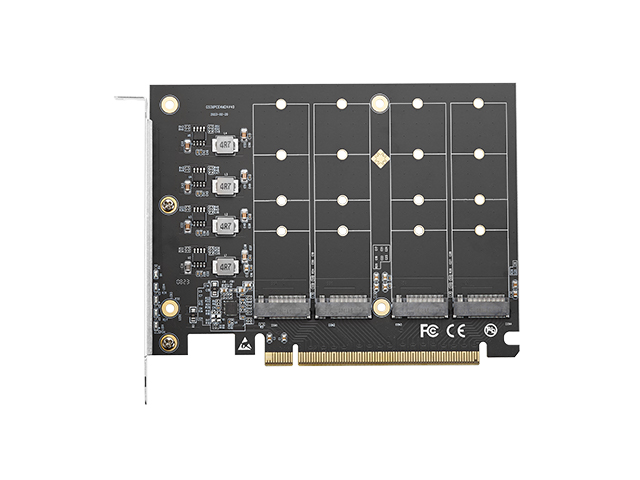

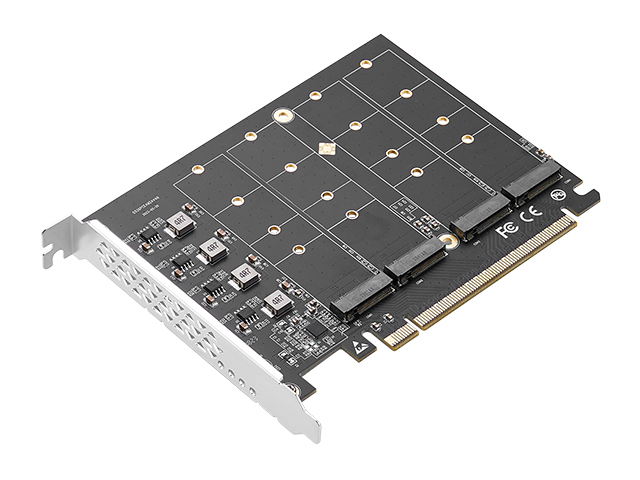

• 1 x PCIe 4.0 x 16 to 4 x M.2(M-Key) card
• 1 x User Manual
• 1 x M.2 Mounting material
Note: Contents may vary depending on country and market.
